Levana Apartment Garage

PROJECT PLAN #593-059D-7509

view plan pricing
Do you need an estimated cost to build?

You will receive a detailed construction cost breakdown report based on your selections and where you plan to build.

REQUEST YOUR REPORT

tab green left curve Quick Details tab green right curve
  • 1032 Total Square Feet
  • 2nd Floor 1032
  • Width: 40'-0" Depth: 30'-0"
  • 2 Bedrooms
  • 1 Full Bath
  • Door 1: 9x7
  • Door 2: 9x7
  • Door 3: 9x7
  • Standard Foundation - Floating Slab
  • Max Ridge Height - 24' 0"
  • Ceiling Heights:
    Main Floor - 8' 0"
    Second Floor - 8' 0"
  • Exterior Wall Framing:
    Main Floor Studs - 2" x 4"
  • Roof Pitch - 5/12 Main, 10/12 Secondary
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Add To Favorites
  • Ask The Professional
  • Share
    Share on Facebook Tweet this on Twitter Pin this on Pinterest
tab green left curve Special Features tab green right curve
  • Building height - 24'
  • Roof pitches - 5/12, 10/12
  • Ceiling heights -
  • First floor - 8'
  • Second floor - 8'
  • Three 9' x 7' overhead doors
  • Spacious family room flows into kitchen breakfast area
  • Two sunny bedrooms share a bath

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.

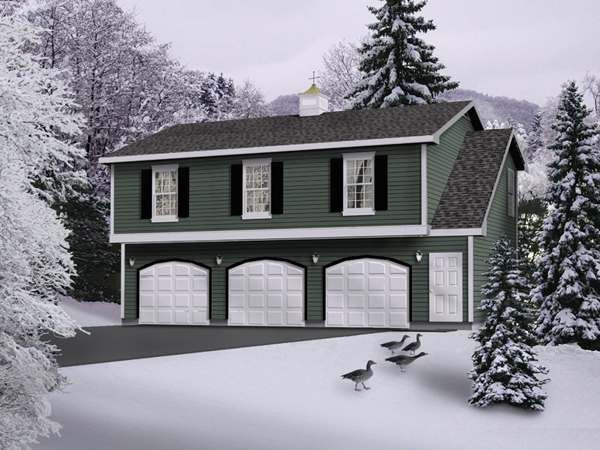

3-Car Garage Apartment


A three-car apartment garage with a colonial style influenceBuilding Plans First Floor - Levana Apartment Garage 059D-7509 | House Plans and MoreBuilding Plans Second Floor - Levana Apartment Garage 059D-7509 | House Plans and MoreBuilding Plans Rear Elevation - Levana Apartment Garage 059D-7509 | House Plans and MoreBuilding Plans Right Elevation - Levana Apartment Garage 059D-7509 | House Plans and MoreBuilding Plans Left Elevation - Levana Apartment Garage 059D-7509 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

First Floor

Building Plans Project Plan First Floor 059D-7509

Second Floor

Building Plans Project Plan Second Floor 059D-7509
