Homestead Rustic Garage

PROJECT PLAN #593-117D-6001

view plan pricing
Do you need an estimated cost to build?

You will receive a detailed construction cost breakdown report based on your selections and where you plan to build.

REQUEST YOUR REPORT

tab green left curve Quick Details tab green right curve
  • 458 Total Square Feet
  • 2nd Floor 458
  • Width: 24'-0" Depth: 35'-0"
  • Door 1: 16x7
  • Standard Foundation - Slab
  • Max Ridge Height - 23' 0"
  • Ceiling Heights:
    Main Floor - 8' 0"
    Second Floor - 8' 0"
  • Exterior Wall Framing:
    Main Floor Studs - 2" x 6"
  • Roof Pitch - 12/12 Main
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Add To Favorites
  • Ask The Professional
  • Share
    Share on Facebook Tweet this on Twitter Pin this on Pinterest
tab green left curve Special Features tab green right curve
  • Building height - 23'
  • Size - The inside measurement of the garage portion is 20 feet wide by 23 feet deep. The garage door is 16 feet wide by 7 feet high. The outside dimension of the garage, workshop and entry is 30 feet wide by 24 feet. The overall dimensions are 35 feet wide by 24 feet deep.
  • Roof pitch - 12/12
  • Ceiling heights -
  • First floor - 8'
  • Second floor - 8'
  • 16' x 7' overhead door
  • The garage has 720 square feet on the first floor and 458 square feet on the second floor
  • 2" x 6" exterior walls
  • Lovely two-car garage features an open entry and workshop space
  • The expansive second floor is perfect for storage

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.

Rustic Garage With Large Workshop
The lovely Homestead rustic Craftsman two-car garage features an open two-story entry and workshop space with a coat closet. The open second floor is perfect for storage, a spacious art studio, or hobby room and it has three large windows filling the space with plenty of natural sunlight.


Building Plans Front of Home - Homestead Rustic Garage 117D-6001 | House Plans and MoreBuilding Plans First Floor - Homestead Rustic Garage 117D-6001 | House Plans and MoreBuilding Plans Second Floor - Homestead Rustic Garage 117D-6001 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

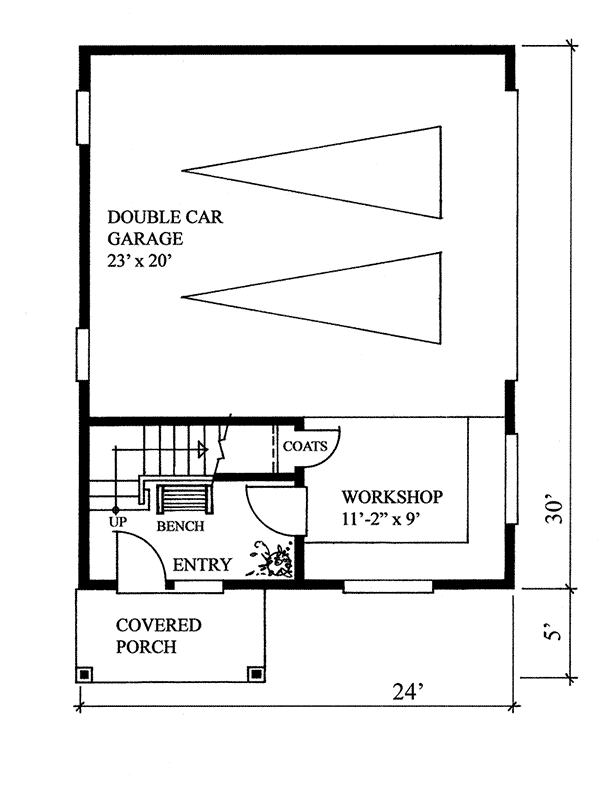

First Floor

Building Plans Project Plan First Floor 117D-6001

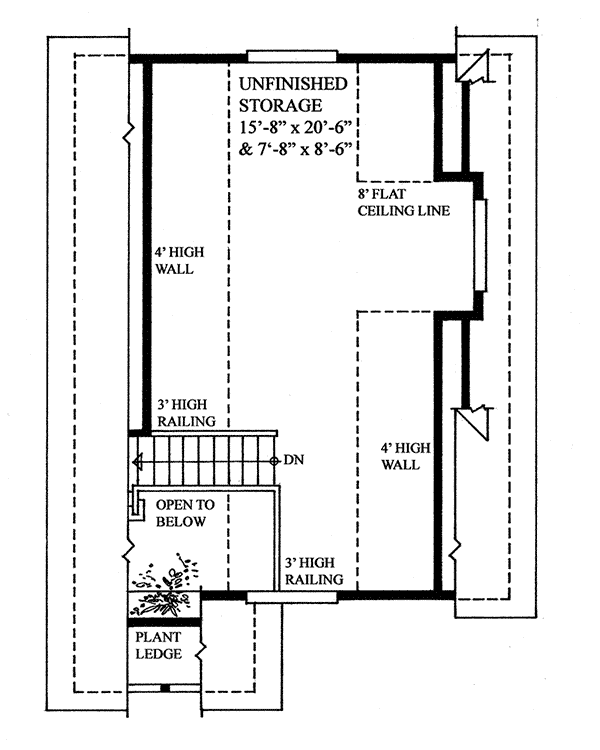

Second Floor

Building Plans Project Plan Second Floor 117D-6001
