Travis One-Car Apartment Garage

PROJECT PLAN #593-113D-7502

view plan pricing
Do you need an estimated cost to build?

You will receive a detailed construction cost breakdown report based on your selections and where you plan to build.

REQUEST YOUR REPORT

tab green left curve Quick Details tab green right curve
  • 1080 Total Square Feet
  • 1st Floor 192
  • 2nd Floor 888
  • Width: 24'-0" Depth: 42'-8"
  • 2 Bedrooms
  • 1 Full Bath, 1 Half Bath
  • Door 1: 10x7
  • Door 2: 6x7
  • Standard Foundation - Floating Slab
  • Alternative Foundations - Monolithic Slab
  • Max Ridge Height - 27' 0"
  • Ceiling Heights:
    Main Floor - 8' 6"
    Second Floor - 8' 0"
  • Exterior Wall Framing:
    Main Floor Studs - 2" x 6"
  • Roof Pitch - 8/12 Main
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Add To Favorites
  • Ask The Professional
  • Share
    Share on Facebook Tweet this on Twitter Pin this on Pinterest
tab green left curve Special Features tab green right curve
  • Building height - 27'
  • Roof pitch - 8/12
  • Ceiling heights -
  • First floor - 8'-6"
  • Second floor - 8'
  • 10' x 7', 6' x 7' overhead doors
  • 2" x 6" exterior walls
  • Large kitchen provides ample room in this apartment
  • The living and dining areas combine creating one large living space that feels larger than its true size
  • The laundry closet and full bath are both centrally located
  • Both bedrooms feature ample closet space

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.

1-Car Garage with Apartment

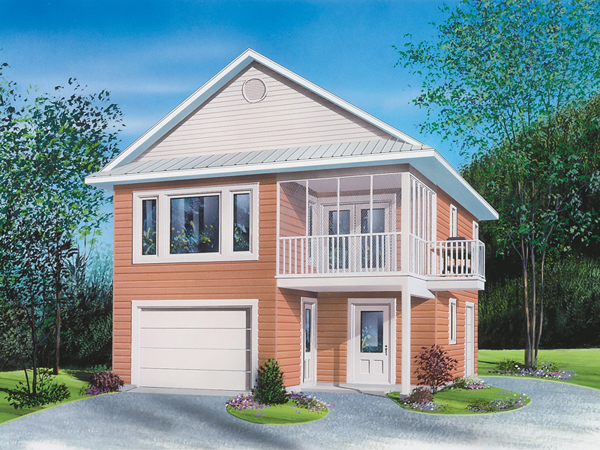

One-car apartment garage has second floor covered porchBuilding Plans Front Photo 01 - Travis One-Car Apartment Garage 113D-7502 | House Plans and MoreBuilding Plans Front Photo 02 - Travis One-Car Apartment Garage 113D-7502 | House Plans and MoreBuilding Plans First Floor - Travis One-Car Apartment Garage 113D-7502 | House Plans and MoreBuilding Plans Second Floor - Travis One-Car Apartment Garage 113D-7502 | House Plans and MoreBuilding Plans Front Photo 03 - Travis One-Car Apartment Garage 113D-7502 | House Plans and MoreBuilding Plans Front Photo 08 - Travis One-Car Apartment Garage 113D-7502 | House Plans and MoreBuilding Plans Front Photo 09 - Travis One-Car Apartment Garage 113D-7502 | House Plans and MoreBuilding Plans Front Photo 10 - Travis One-Car Apartment Garage 113D-7502 | House Plans and MoreBuilding Plans Front Photo 11 - Travis One-Car Apartment Garage 113D-7502 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

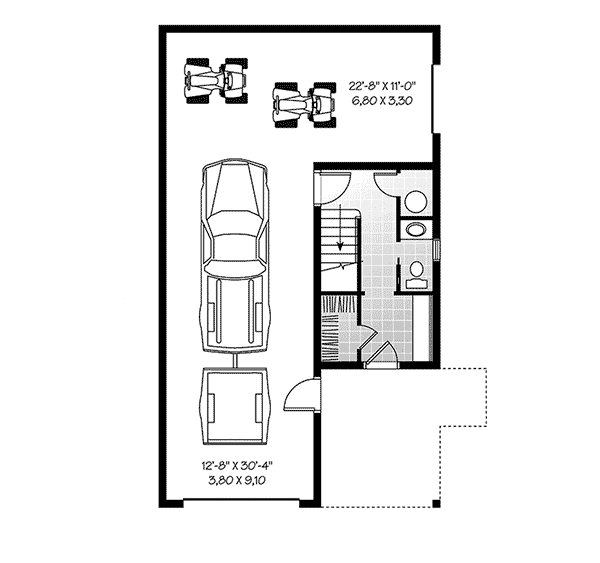

First Floor

Building Plans Project Plan First Floor 113D-7502

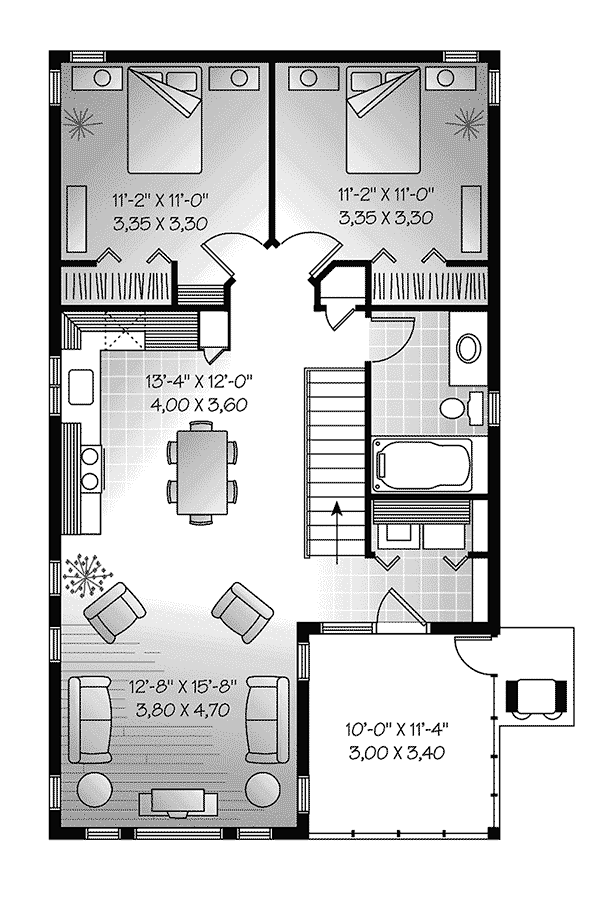

Second Floor

Building Plans Project Plan Second Floor 113D-7502
