Laycie 3-Car Garage Apartment

PROJECT PLAN #593-059D-7504

view plan pricing
Do you need an estimated cost to build?

You will receive a detailed construction cost breakdown report based on your selections and where you plan to build.

REQUEST YOUR REPORT

tab green left curve Quick Details tab green right curve
  • 949 Total Square Feet
  • 2nd Floor 949
  • Width: 40'-0" Depth: 27'-0"
  • 1 Bedrooms
  • 1 Full Bath
  • Door 1: 9x7
  • Door 2: 9x7
  • Door 3: 9x7
  • Standard Foundation - Footing and Foundation Wall
  • Max Ridge Height - 26' 0"
  • Ceiling Heights:
    Main Floor - 8' 0"
    Second Floor - 8' 0"
  • Exterior Wall Framing:
    Main Floor Studs - 2" x 4"
  • Roof Pitch - 6/12 Main, 6/12 Front Gable
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Add To Favorites
  • Ask The Professional
  • Share
    Share on Facebook Tweet this on Twitter Pin this on Pinterest
tab green left curve Special Features tab green right curve
  • Building height - 24'-10"
  • Roof pitch - 6/12
  • Ceiling heights -
  • First floor - 8'
  • Second floor - 8'
  • Three 9' x 7' overhead doors
  • Sitting area includes an attractive window seat which becomes focal point
  • This 3-car apartment garage offers plenty of space for vehicles plus the perfect sitting area near the kitchen/dining space including an attractive window seat as a charming focal point.

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.

3 Car Garage Apartment


Three-car apartment garage has a center gabled window on the second story for interestBuilding Plans First Floor - Laycie 3-Car Garage Apartment 059D-7504 | House Plans and MoreBuilding Plans Second Floor - Laycie 3-Car Garage Apartment 059D-7504 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

First Floor

Building Plans Project Plan First Floor 059D-7504

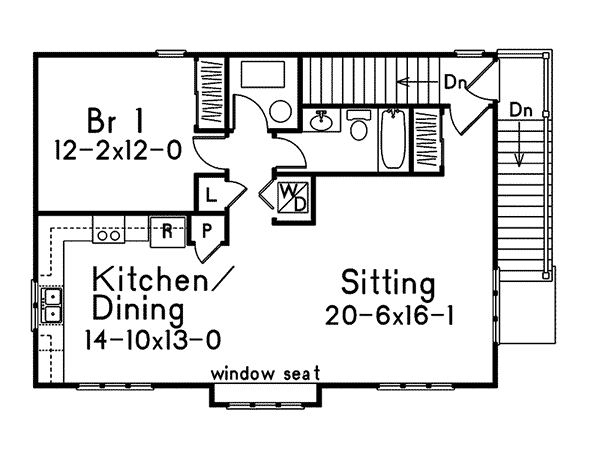

Second Floor

Building Plans Project Plan Second Floor 059D-7504
ALL PRICES NOTED BELOW ARE IN US DOLLARS
Plan Packages
CAD Package $665
PDF File Format (recommended) $560

Which Plan Package is Right for Me?

Other Available Options
Right Reading Reverse $75
Material List (recommended) $70
2x6 Exterior Walls $75
Unlimited Build License $900

What Other Options Do I Need?

Foundation Options
Standard Foundation: Footing and Foundation Wall No additional fee
Shipping and Handling Home Plans Project Plans
US Regular (7-10 business days) $35 $25
US Priority (3-5 business days) $55 $45
US Express (1-2 business days) $75 $65
Canada Standard (8-12 business days) $50 $40
Canada Express (3-5 business days) $100 $80
Express Orders need to be placed before 11am CST - Alaska and Hawaii express only
*Shipping charges for to/from and may be subject to custom's fees and/or tax/duties.
For overseas/international call, fax, or email customerservice@designamerica.com for shipping costs.
Building Aids - Add $2 shipping for each item
Legal Kit $35
Plumbing Kit (not plan specific) $30
Electrical Kit (not plan specific) $30
Framing Kit (not plan specific) $30
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $60

Which Building Aids Do I Need?
