Palmerhill Garage Apartment

PROJECT PLAN #593-012D-7501

view plan pricing
Do you need an estimated cost to build?

You will receive a detailed construction cost breakdown report based on your selections and where you plan to build.

REQUEST YOUR REPORT

tab green left curve Quick Details tab green right curve
  • 633 Total Square Feet
  • 2nd Floor 633
  • Width: 28'-0" Depth: 26'-0"
  • 1 Bedrooms
  • 1 Full Bath
  • Door 1: 8x7
  • Door 2: 8x7
  • Standard Foundation - Slab
  • Max Ridge Height - 24' 4"
  • Ceiling Heights:
    Main Floor - 8' 0"
    Second Floor - 8' 0"
  • Exterior Wall Framing:
    Main Floor Studs - 2" x 6"
  • Roof Pitch - 9/12
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Add To Favorites
  • Ask The Professional
  • Share
    Share on Facebook Tweet this on Twitter Pin this on Pinterest
tab green left curve Special Features tab green right curve
  • Building height - 25'
  • Roof pitch - 9/12
  • Ceiling heights -
  • First floor - 8'
  • Second floor - 8'
  • Two 8' x 7' overhead doors
  • Lots of storage throughout including built-in shelves and a desk in the living area
  • Complete list of materials
  • 2" x 6" exterior walls
tab green left curve Similar Plan Styles tab green right curve

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.

Garage Apartment With Open Living Area
This stylish apartment garage includes plenty of storage including built-in shelves and a desk in the living area. There is a functional U-shaped kitchen, and a bedroom and bath combo including space for a washer and dryer.

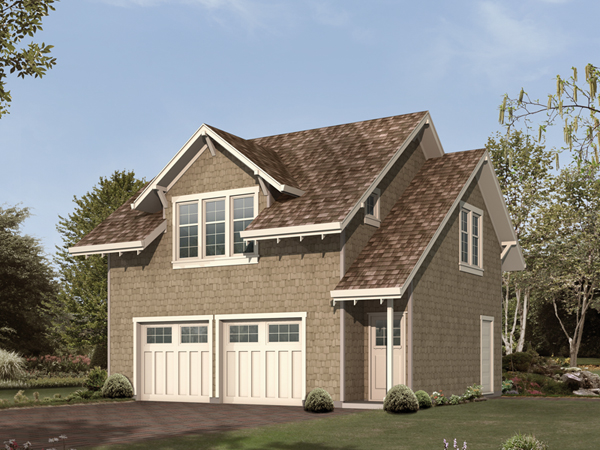

Attractive Craftsman style two-car apartment garageArts & Crafts House Plan First Floor - Palmerhill Garage Apartment 012D-7501 | House Plans and MoreArts & Crafts House Plan Second Floor - Palmerhill Garage Apartment 012D-7501 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

First Floor

Arts & Crafts Project Plan First Floor 012D-7501

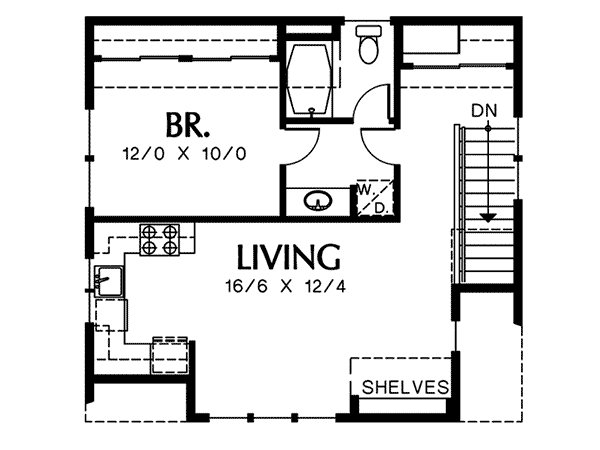

Second Floor

Building Plans Project Plan Second Floor 012D-7501
ALL PRICES NOTED BELOW ARE IN US DOLLARS
Plan Packages
CAD Package $2136
PDF File Format (recommended) $1068
5-Set Package $1268

Which Plan Package is Right for Me?

Other Available Options
Right Reading Reverse $225
Additional Sets $100

What Other Options Do I Need?

Foundation Options
Standard Foundation: Slab No additional fee
Shipping and Handling Home Plans Project Plans
US Regular (7-10 business days) $35 $25
US Priority (3-5 business days) $55 $45
US Express (1-2 business days) $75 $65
Canada Standard (8-12 business days) $50 $40
Canada Express (3-5 business days) $100 $80
Express Orders need to be placed before 11am CST - Alaska and Hawaii express only
*Shipping charges for to/from and may be subject to custom's fees and/or tax/duties.
For overseas/international call, fax, or email customerservice@designamerica.com for shipping costs.
Building Aids - Add $2 shipping for each item
Legal Kit $35
Plumbing Kit (not plan specific) $30
Electrical Kit (not plan specific) $30
Framing Kit (not plan specific) $30
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $60

Which Building Aids Do I Need?
