Waterville 3-Car Garage

PROJECT PLAN #593-012D-7500

view plan pricing
Do you need an estimated cost to build?

You will receive a detailed construction cost breakdown report based on your selections and where you plan to build.

REQUEST YOUR REPORT

tab green left curve Quick Details tab green right curve
  • 1179 Total Square Feet
  • 1st Floor 492
  • 2nd Floor 687
  • Width: 48'-0" Depth: 36'-0"
  • 1 Full Bath
  • Door 1: 9x10
  • Door 2: 9x10
  • Door 3: 9x10
  • Standard Foundation - Slab
  • Max Ridge Height - 26' 0"
  • Ceiling Heights:
    Main Floor - 12' 0"
    Second Floor - 8' 0"
  • Exterior Wall Framing:
    Main Floor Studs - 2" x 6"
  • Roof Pitch - 10/12
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Add To Favorites
  • Ask The Professional
  • Share
    Share on Facebook Tweet this on Twitter Pin this on Pinterest
tab green left curve Special Features tab green right curve
  • Building height - 25'-6"
  • Roof pitch - 10/12
  • Ceiling heights -
  • First floor - 12'
  • Second floor - 8'
  • Three 9' x 10' overhead doors
  • Bath on first floor and convenient bonus room on second floor
  • Vaulted bonus room would make an ideal home office or hobby area
  • Complete list of materials
  • 2" x 6" exterior walls

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.

3-Car Garage With Bonus Room
The Waterville garage and loft offers three garage bays, a large storage area, and a full bath on the first floor. The vaulted second floor bonus room would make an ideal home office or hobby area and includes an outdoor balcony to get a much needed break and some fresh air every now and then.


Three-car garage with Craftsman style details on the roof and a large bay windowBuilding Plans Front Image - Waterville 3-Car Garage 012D-7500 | House Plans and MoreBuilding Plans First Floor - Waterville 3-Car Garage 012D-7500 | House Plans and MoreBuilding Plans Second Floor - Waterville 3-Car Garage 012D-7500 | House Plans and MoreBuilding Plans Rear Elevation - Waterville 3-Car Garage 012D-7500 | House Plans and MoreBuilding Plans Rear Elevation - Waterville 3-Car Garage 012D-7500 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

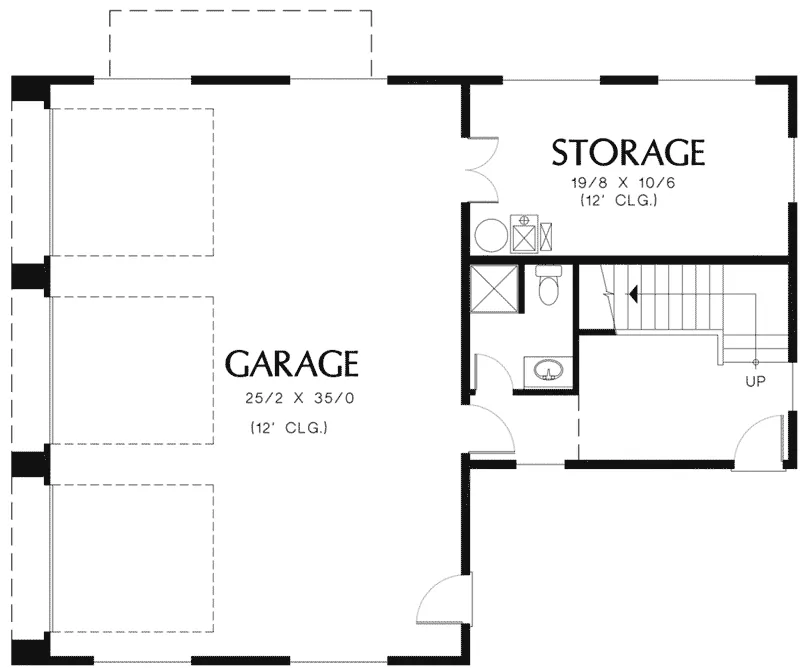

First Floor

Building Plans Project Plan First Floor 012D-7500

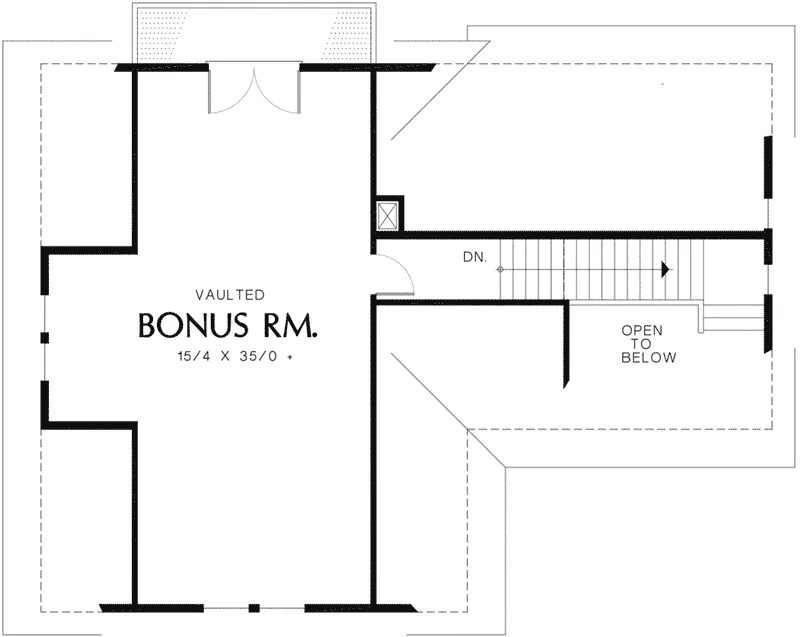

Second Floor
