Rainey Six Car Garage And Shop

PROJECT PLAN #593-009D-7518

view plan pricing
Do you need an estimated cost to build?

You will receive a detailed construction cost breakdown report based on your selections and where you plan to build.

REQUEST YOUR REPORT

tab green left curve Quick Details tab green right curve
  • 2453 Total Square Feet
  • 1st Floor 2453
  • Width: 80'-0" Depth: 32'-0"
  • 1 Half Bath
  • Door 1: 12x10
  • Door 2: 12x10
  • Door 3: 12x10
  • Door 4: 12x10
  • Door 5: 12x10
  • Door 6: 12x8
  • Standard Foundation - Slab
  • Max Ridge Height - 21' 0"
  • Ceiling Heights:
    Main Floor - 10' 0"
  • Roof Pitch - 6/12
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Add To Favorites
  • Ask The Professional
  • Share
    Share on Facebook Tweet this on Twitter Pin this on Pinterest
tab green left curve Special Features tab green right curve
  • Unfinished 4-car garage space is 1,840 sq. ft and the finished shop space is 613 sq. ft.
  • Building height - 21'
  • Roof pitch - 6/12
  • Ceiling heights -
  • Shop - 10'
  • Garages - 12'
  • Five 12' x 10' and one 12' x 8' overhead doors

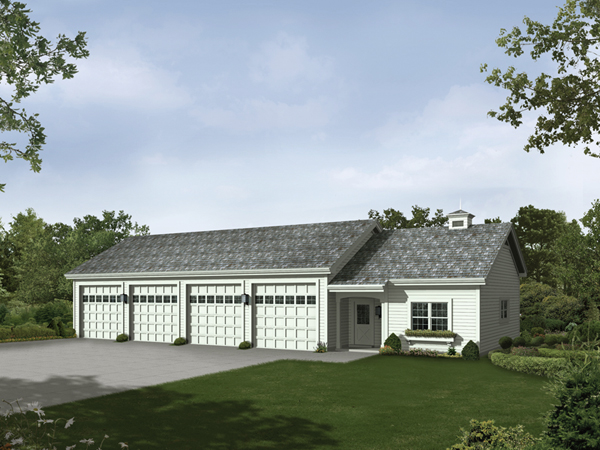

  • Attractive exterior features an entry porch, window planter box and a roof cupola
  • Total square Feet - 2,453 4-Car Garage - 1,840 Shop - 613

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.

Shop & Equipment Garage


Four-car garage with work shop and equipment storage through front doorBuilding Plans First Floor - Rainey Six Car Garage And Shop 009D-7518 | House Plans and MoreBuilding Plans Rear Elevation - Rainey Six Car Garage And Shop 009D-7518 | House Plans and MoreBuilding Plans Right Elevation - Rainey Six Car Garage And Shop 009D-7518 | House Plans and MoreBuilding Plans Left Elevation - Rainey Six Car Garage And Shop 009D-7518 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

First Floor

Building Plans Project Plan First Floor 009D-7518
