Lisandra Three-Car Garage

PROJECT PLAN #593-009D-7517

view plan pricing
Do you need an estimated cost to build?

You will receive a detailed construction cost breakdown report based on your selections and where you plan to build.

REQUEST YOUR REPORT

tab green left curve Quick Details tab green right curve
  • 967 Total Square Feet
  • 1st Floor 403
  • 2nd Floor 564
  • Width: 32'-8" Depth: 34'-4"
  • 1 Half Bath
  • Door 1: 9x8
  • Door 2: 9x8
  • Door 3: 9x8
  • Standard Foundation - Slab
  • Max Ridge Height - 25' 0"
  • Ceiling Heights:
    Main Floor - 9' 0"
    Second Floor - 8' 0"
  • Roof Pitch - 10/12
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Add To Favorites
  • Ask The Professional
  • Share
    Share on Facebook Tweet this on Twitter Pin this on Pinterest
tab green left curve Plan Features tab green right curve
tab green left curve Special Features tab green right curve
  • Building height - 25'
  • Roof pitch - 10/12
  • Ceiling heights - First floor 9' - Second floor 8'
  • Three 9' x 8' overhead doors

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.

3-Car Garage with Bonus Room
Hall from garage provides access to a room ideal for office or workshop, a half bath, stairs to the second floor and a bonus room and door to the exterior.


Stone covered three-car garage with living space aboveBuilding Plans First Floor - Lisandra Three-Car Garage 009D-7517 | House Plans and MoreBuilding Plans Second Floor - Lisandra Three-Car Garage 009D-7517 | House Plans and MoreBuilding Plans Rear Elevation - Lisandra Three-Car Garage 009D-7517 | House Plans and MoreBuilding Plans Right Elevation - Lisandra Three-Car Garage 009D-7517 | House Plans and MoreBuilding Plans Left Elevation - Lisandra Three-Car Garage 009D-7517 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

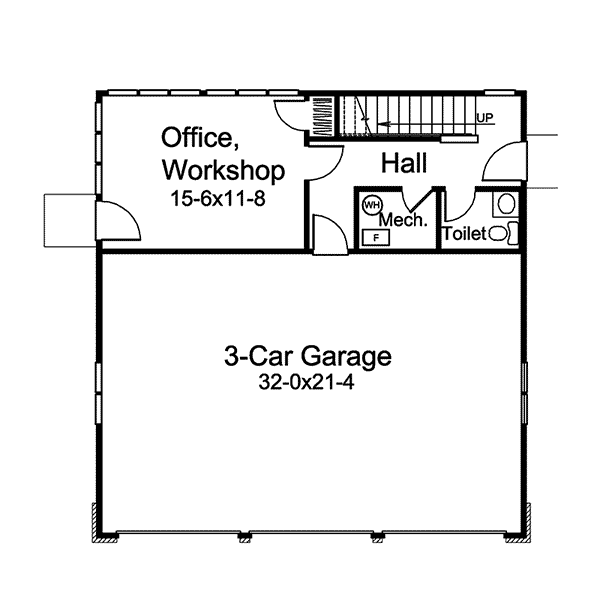

First Floor

Building Plans Project Plan First Floor 009D-7517

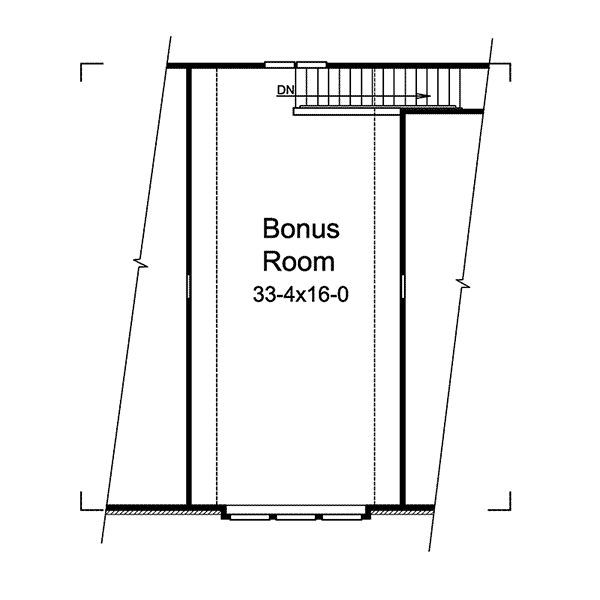

Second Floor

Building Plans Project Plan Second Floor 009D-7517
ALL PRICES NOTED BELOW ARE IN US DOLLARS
Plan Packages
CAD Package $850
Reproducible Master $625
PDF File Format (recommended) $400
5-Set Package $450

Which Plan Package is Right for Me?

Other Available Options
Right Reading Reverse $75
Additional Sets $50
Material List (recommended) $75
Add PDF to Printed Plan Package $75
Unlimited Build License $300

What Other Options Do I Need?

Foundation Options
Standard Foundation: Slab No additional fee
Shipping and Handling Home Plans Project Plans
US Regular (7-10 business days) $35 $25
US Priority (3-5 business days) $55 $45
US Express (1-2 business days) $75 $65
Canada Standard (8-12 business days) $50 $40
Canada Express (3-5 business days) $100 $80
Express Orders need to be placed before 11am CST - Alaska and Hawaii express only
*Shipping charges for to/from and may be subject to custom's fees and/or tax/duties.
For overseas/international call, fax, or email customerservice@designamerica.com for shipping costs.
Building Aids - Add $2 shipping for each item
Legal Kit $35
Plumbing Kit (not plan specific) $30
Electrical Kit (not plan specific) $30
Framing Kit (not plan specific) $30
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $60

Which Building Aids Do I Need?
