Kacy 2-Car Craftsman Garage

PROJECT PLAN #593-051D-0916

view plan pricing
Do you need an estimated cost to build?

You will receive a detailed construction cost breakdown report based on your selections and where you plan to build.

REQUEST YOUR REPORT

tab green left curve Quick Details tab green right curve
  • 1040 Total Square Feet
  • 1st Floor 1040
  • Width: 26'-0" Depth: 40'-0"
  • Standard Foundation - Slab
  • Max Ridge Height - 22' 0"
  • Ceiling Heights:
    Main Floor - 10' 0"
  • Exterior Wall Framing:
    Main Floor Studs - 2" x 6"
  • Roof Pitch - 10/12 Main, 5/12 Secondary
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Add To Favorites
  • Ask The Professional
  • Share
    Share on Facebook Tweet this on Twitter Pin this on Pinterest
tab green left curve Special Features tab green right curve
  • Building Height - 22'
  • Roof Pitch - 10/12, 5/12
  • Ceiling Height - 10'

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.

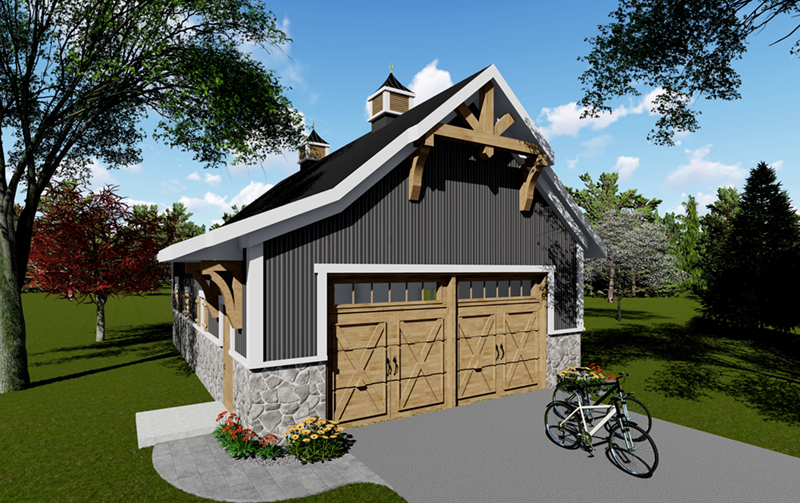

Building Plans Front of Home - 051D-0916 | House Plans and MoreBuilding Plans Rear Photo 01 - 051D-0916 | House Plans and MoreBuilding Plans First Floor - 051D-0916 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

First Floor

Building Plans Project Plan First Floor 051D-0916
ALL PRICES NOTED BELOW ARE IN US DOLLARS
Plan Packages
CAD Package $864
Reproducible Master $523
PDF File Format (recommended) $523
8-Set Package $455
5-Set Package $382

Which Plan Package is Right for Me?

Other Available Options
Right Reading Reverse $305
Additional Sets $90
One Additional Build License $400

What Other Options Do I Need?

Foundation Options
Standard Foundation: Slab No additional fee
Shipping and Handling Home Plans Project Plans
US Regular (7-10 business days) $35 $25
US Priority (3-5 business days) $55 $45
US Express (1-2 business days) $75 $65
Canada Standard (8-12 business days) $50 $40
Canada Express (3-5 business days) $100 $80
Express Orders need to be placed before 11am CST - Alaska and Hawaii express only
*Shipping charges for to/from and may be subject to custom's fees and/or tax/duties.
For overseas/international call, fax, or email customerservice@designamerica.com for shipping costs.
Building Aids - Add $2 shipping for each item
Legal Kit $35
Plumbing Kit (not plan specific) $30
Electrical Kit (not plan specific) $30
Framing Kit (not plan specific) $30
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $60

Which Building Aids Do I Need?
