Ellendale Trail Screen Pavilion

PROJECT PLAN #593-009D-7530

view plan pricing
Do you need an estimated cost to build?

You will receive a detailed construction cost breakdown report based on your selections and where you plan to build.

REQUEST YOUR REPORT

tab green left curve Quick Details tab green right curve
  • 814 Total Square Feet
  • 1st Floor 814
  • Width: 24'-0" Depth: 47'-0"
  • 1 Full Bath
  • Standard Foundation - Slab
  • Max Ridge Height - 15' 6"
  • Ceiling Heights:
    Main Floor - 14' 6"
  • Roof Pitch - 6/12
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Add To Favorites
  • Ask The Professional
  • Share
    Share on Facebook Tweet this on Twitter Pin this on Pinterest
tab green left curve Special Features tab green right curve
  • Building height - 15'-6"
  • Roof pitch - 6/12
  • Ceiling height - 14'-6"
  • Building has 814 square feet
  • A vaulted ceiling with skylights, whirlpool hot tub, kitchen/bar, sauna room and full bath highlight this design
  • Located at the rear is a 24' X 12' covered patio with outdoor fireplace and vaulted ceiling with optional skylights

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.

Screened-in Recreation Room With Outdoor Patio
A vaulted ceiling with skylights, a hot tub, a kitchen/bar, a sauna room, and a full bath highlight this design. Located at the rear is a 24' x 12' covered vaulted patio with outdoor fireplace and optional skylights. Add an outdoor grill and you have an exceptional party space, or poolside structure.

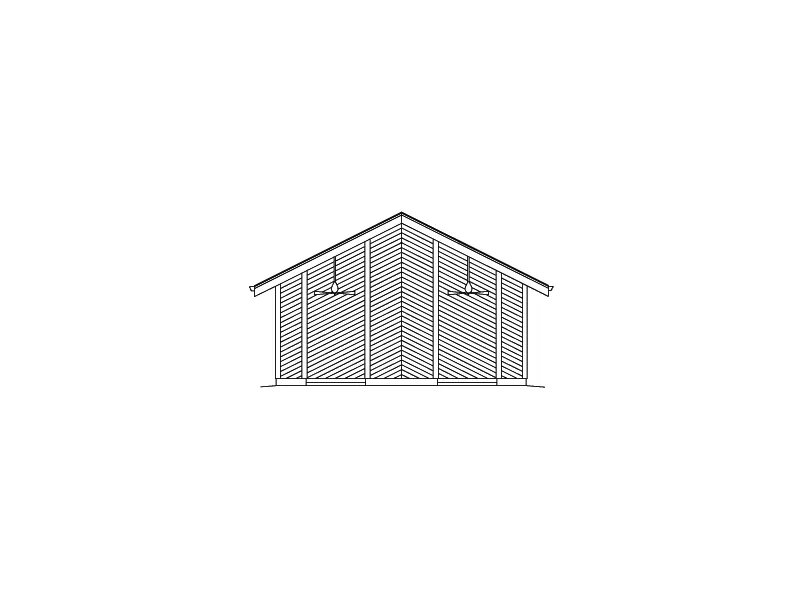

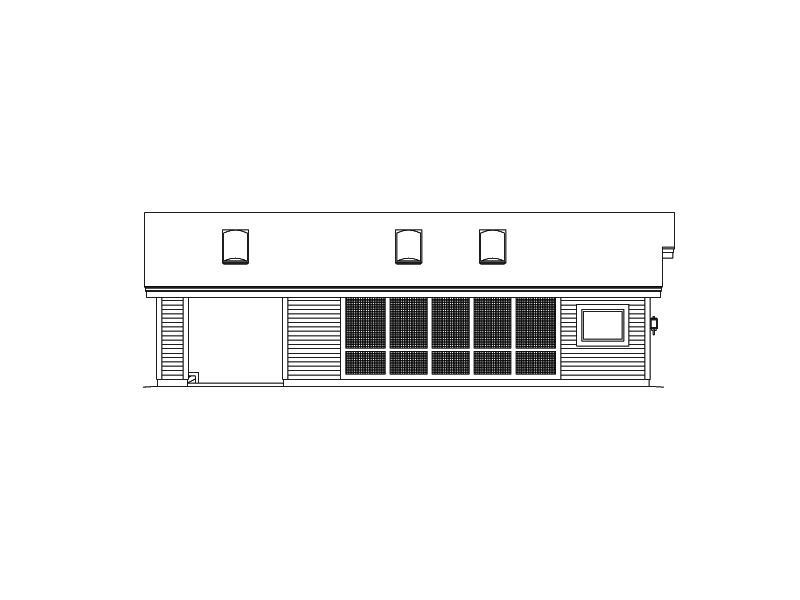

Screened-in structure with tall gabled front entry Building Plans Front Photo of House - Ellendale Trail Screen Pavilion 009D-7530 | House Plans and MoreBuilding Plans First Floor - Ellendale Trail Screen Pavilion 009D-7530 | House Plans and MoreBuilding Plans Rear Elevation - Ellendale Trail Screen Pavilion 009D-7530 | House Plans and MoreBuilding Plans Rear Elevation - Ellendale Trail Screen Pavilion 009D-7530 | House Plans and MoreBuilding Plans Right Elevation - Ellendale Trail Screen Pavilion 009D-7530 | House Plans and MoreBuilding Plans Right Elevation - Ellendale Trail Screen Pavilion 009D-7530 | House Plans and MoreBuilding Plans Left Elevation - Ellendale Trail Screen Pavilion 009D-7530 | House Plans and MoreBuilding Plans Left Elevation - Ellendale Trail Screen Pavilion 009D-7530 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

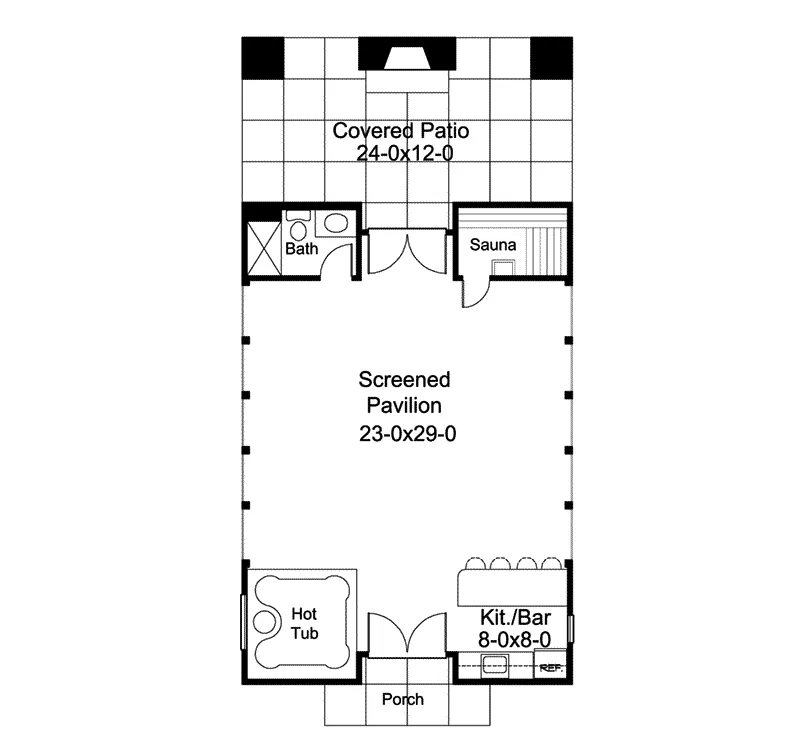

First Floor

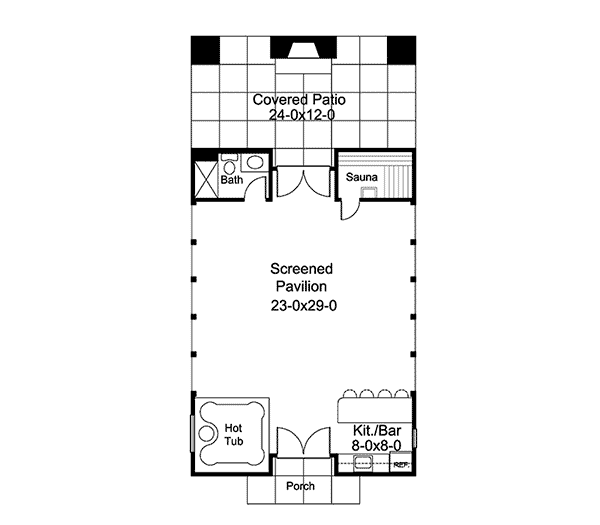

Building Plans Project Plan First Floor 009D-7530
