Sierra Garage Apartment

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.


PROJECT PLAN #593-002D-7527

tab green left curve Quick Details tab green right curve
  • 438 Total Square Feet
  • 2nd Floor 438
  • Width: 24'-0" Depth: 26'-0"
  • 1 Bedrooms
  • 1 Full Bath
  • Door 1: 9x7
  • Door 2: 9x7
  • Standard Foundation - Floating Slab
tab green left curve Additional Options tab green right curve

Save this plan to:

Share on Facebook Tweet this on Twitter Pin this on Pinterest Recommend on Google Add to Stumbleupon Digg It! Share on LinkedIn Share on Tumblr

tab green left curve Special Features tab green right curve
  • Building height - 21'-3"
  • Roof pitch - 6/12
  • Ceiling heights -
  • First floor - 8'
  • Second floor - 7'-9"
  • Two 9' x 7' overhead doors
  • Comfortable colonial-styling
  • Large windows warm inside
  • Complete list of materials
  • Step-by-step instructions

First Floor

Image Of Large First Floor For House Plan 002D-7527

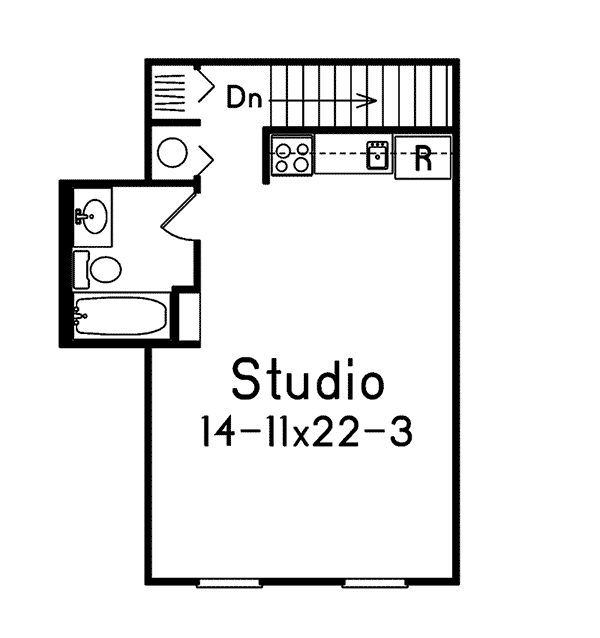

Second Floor

Image Of Second Floor For House Plan 002D-7527
Plan Packages (PRICES in US $)
CAD Package $1000
Reproducible Master (recommended) $610
PDF File Format $610
8-Set Package $510
5-Set Package (minimum construction package) $410
1-Set Package $310

Click here for help.  Which Plan Package is right for me?


Other Available Options (PRICES in US $)
Mirror Reverse $15
Additional Sets $45

Click here for help.  What Other Options Do I Need?


Building Aids (PRICES in US $)
Legal Kit $35
Plumbing Kit (not plan specific) $20
Electrical Kit (not plan specific) $20
Framing Kit (not plan specific) $20
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $40

Click here for help.  Which Building Aids Do I Need?
