Raymar Gambrel Roof Garage

PROJECT PLAN #593-059D-6086

view plan pricing
Do you need an estimated cost to build?

You will receive a detailed construction cost breakdown report based on your selections and where you plan to build.

REQUEST YOUR REPORT

tab green left curve Quick Details tab green right curve
  • 1360 Total Square Feet
  • 1st Floor 860
  • 2nd Floor 500
  • Width: 40'-4" Depth: 30'-0"
  • Standard Foundation - Footing and Foundation Wall
  • Max Ridge Height - 21' 6"
  • Ceiling Heights:
    Main Floor - 8' 0"
    Second Floor - 8' 0"
  • Exterior Wall Framing:
    Main Floor Studs - 2" x 4"
  • Roof Pitch - 16/12 Main, 6/12 Main
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Add To Favorites
  • Ask The Professional
  • Share
    Share on Facebook Tweet this on Twitter Pin this on Pinterest
tab green left curve Special Features tab green right curve
  • Building height - 21'-6"
  • Ceiling heights: Floor 1 - 8' Floor 2 - 8'

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.

2-Car Garage with Gambrel Roof & Loft


Building Plans Front of Home - Raymar Gambrel Roof Garage 059D-6086 | House Plans and MoreBuilding Plans First Floor - Raymar Gambrel Roof Garage 059D-6086 | House Plans and MoreBuilding Plans Second Floor - Raymar Gambrel Roof Garage 059D-6086 | House Plans and MoreBuilding Plans Front Elevation - Raymar Gambrel Roof Garage 059D-6086 | House Plans and MoreBuilding Plans Rear Elevation - Raymar Gambrel Roof Garage 059D-6086 | House Plans and MoreBuilding Plans Right Elevation - Raymar Gambrel Roof Garage 059D-6086 | House Plans and MoreBuilding Plans Left Elevation - Raymar Gambrel Roof Garage 059D-6086 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

First Floor

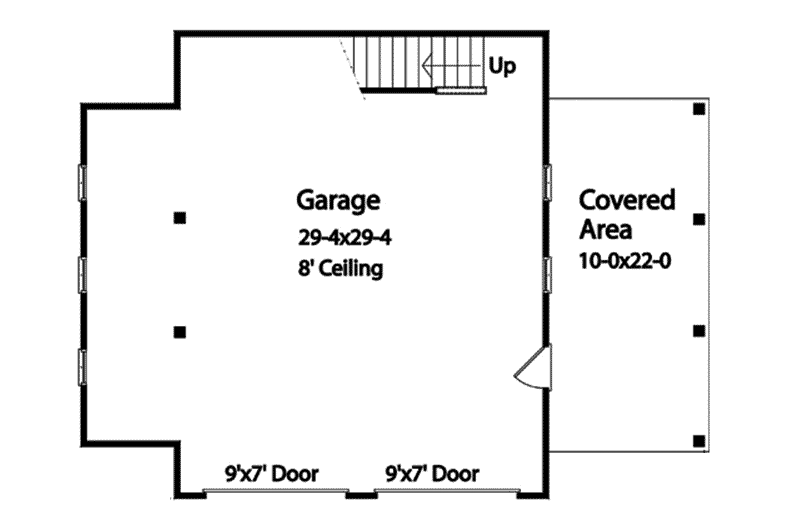

Building Plans Project Plan First Floor 059D-6086
