Marvina Craftsman Garage

PROJECT PLAN #593-117D-7500

view plan pricing

tab green left curve Quick Details tab green right curve
  • 1455 Total Square Feet
  • 1st Floor 848
  • 2nd Floor 607
  • Width: 34'-0" Depth: 31'-0"
  • 1 Full Bath
  • Door 1: 16x7
  • Standard Foundation - Slab
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Ask The Professional
  • Share
tab green left curve Special Features tab green right curve
  • Building height - 25'
  • Roof pitch - 10/12
  • Ceiling heights -
  • First floor - 8', 17'
  • Second floor - 8'
  • 16' x 7' overhead door
  • 2" x 6" exterior walls
  • Craftsman style pillars and shingle siding give this garage a tremendous amount of character and a custom feel
  • The second floor has plenty of storage and is designed to be a spacious exercise room
  • The first floor includes a full bath and functional workshop with a built-in wrap-around counter

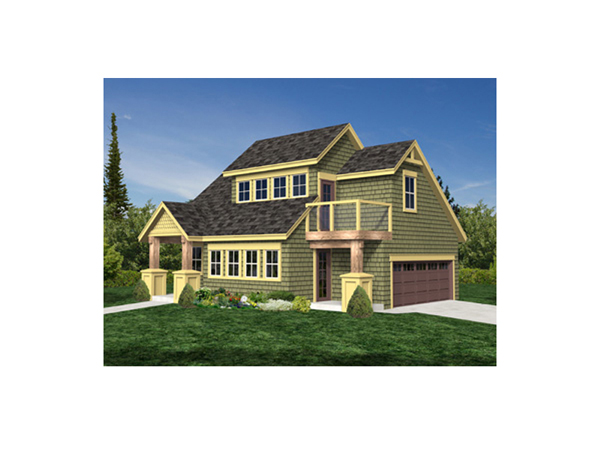

Craftsman Apartment Garage
Two-car garage apartment with craftsman style, shingle siding and rustic touchesBuilding Plans First Floor - 117D-7500 | House Plans and MoreBuilding Plans Second Floor - 117D-7500 | House Plans and More
Need to flip the floor plan?

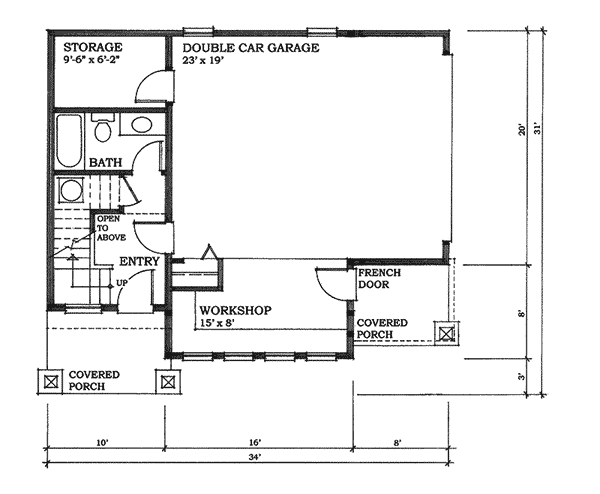

First Floor

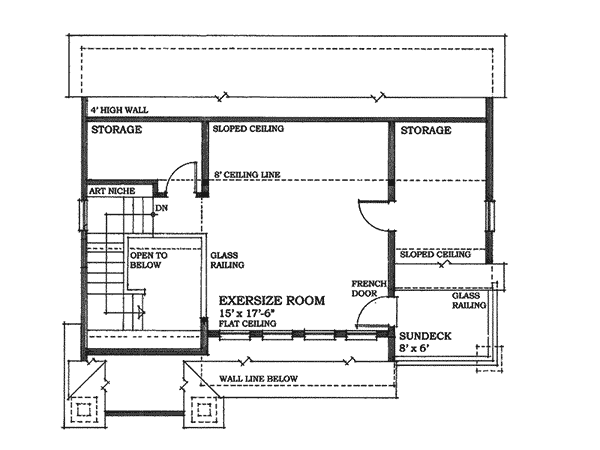

Second Floor

Plan Packages
CAD Package $900
Reproducible Master $620
PDF File Format (recommended) $570
5-Set Package (minimum construction package) $470

Which Plan Package is right for me?

Other Available Options
Mirror Reverse $15
Additional Sets $50
Material List (recommended) $125

What Other Options Do I Need?

Shipping and Handling Home Plans Project Plans
US Regular (7-10 business days) $30 $20
US Priority (3-5 business days) $50 $40
US Express (1-2 business days) $70 $60
Canada Standard (8-12 business days) $50 $40
Canada Express (3-5 business days) $100 $80
Express Orders need to be placed before 11am CST - Alaska and Hawaii express only
*Shipping charges for to/from and may be subject to custom's fees and/or tax/duties.
For overseas/international call, fax, or email for shipping costs.

Building Aids - Add $2 shipping for each item
Legal Kit $35
Plumbing Kit (not plan specific) $20
Electrical Kit (not plan specific) $20
Framing Kit (not plan specific) $20
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $40

Which Building Aids Do I Need?
