Lacoya Two-Car Garage

PROJECT PLAN #593-113D-7504

view plan pricing
Do you need an estimated cost to build?

You will receive a detailed construction cost breakdown report based on your selections and where you plan to build.

REQUEST YOUR REPORT

tab green left curve Quick Details tab green right curve
  • 1068 Total Square Feet
  • 1st Floor 140
  • 2nd Floor 928
  • Width: 32'-0" Depth: 32'-0"
  • 2 Bedrooms
  • 1 Full Bath, 1 Half Bath
  • Door 1: 9x7
  • Door 2: 9x7
  • Standard Foundation - Floating Slab
  • Alternative Foundations - Monolithic Slab
  • Max Ridge Height - 28' 8"
  • Ceiling Heights:
    Main Floor - 8' 0"
    Second Floor - 8' 6"
  • Exterior Wall Framing:
    Main Floor Studs - 2" x 6"
  • Roof Pitch - 10/12 Main, 6/12 Secondary
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Add To Favorites
  • Ask The Professional
  • Share
    Share on Facebook Tweet this on Twitter Pin this on Pinterest
tab green left curve Special Features tab green right curve
  • Building height - 28'-8"
  • Roof pitch - 10/12 , 6/12
  • Ceiling heights -
  • First floor - 8'
  • Second floor - 8'-6"
  • Two 9' x 7' overhead doors
  • 2" x 6" exterior walls
  • Very nice garage/guest suite combination with storage.
  • Open entry over two storys with original access to the lateral terrace.
  • Two sizable bedrooms skillfully share a full bath
  • One large open living space combines perfectly with dining area and kitchen
  • The laundry room is centrally located for ease with household chores

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.

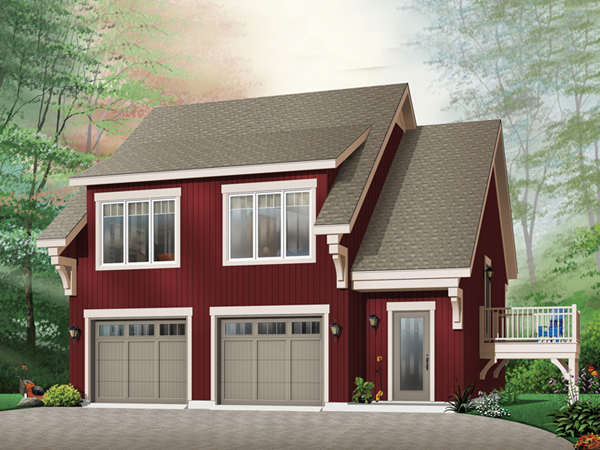

2-Car Garage with Style


Sleek two-story apartment garage with large second floor windowsBuilding Plans Front Photo 01 - Lacoya Two-Car Garage 113D-7504 | House Plans and MoreBuilding Plans Front Photo 02 - Lacoya Two-Car Garage 113D-7504 | House Plans and MoreBuilding Plans Front Image - Lacoya Two-Car Garage 113D-7504 | House Plans and MoreBuilding Plans First Floor - Lacoya Two-Car Garage 113D-7504 | House Plans and MoreBuilding Plans Second Floor - Lacoya Two-Car Garage 113D-7504 | House Plans and MoreBuilding Plans Front Photo 03 - Lacoya Two-Car Garage 113D-7504 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

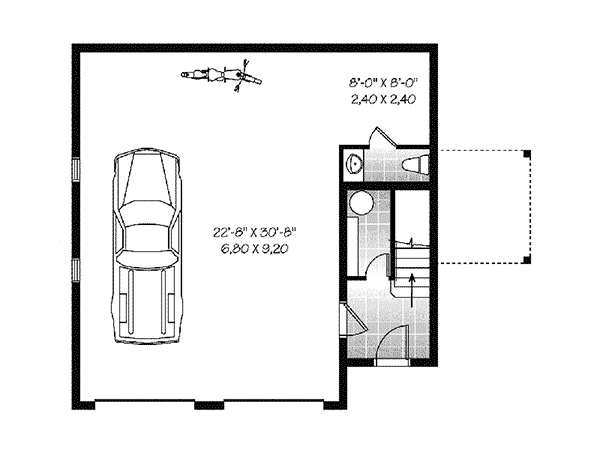

First Floor

Building Plans Project Plan First Floor 113D-7504

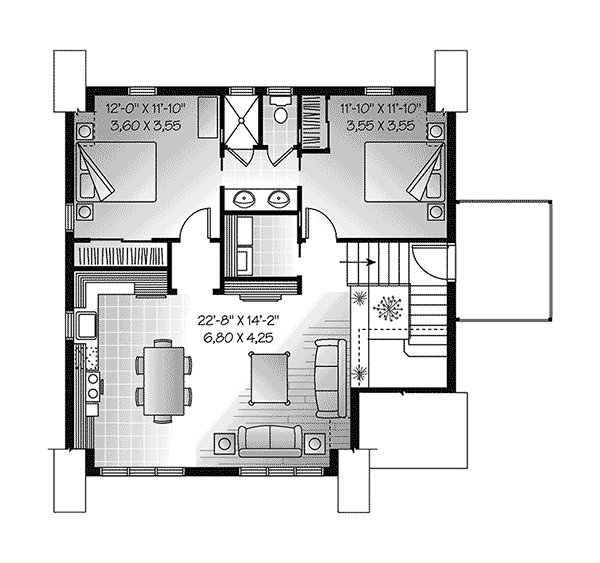

Second Floor

Building Plans Project Plan Second Floor 113D-7504
ALL PRICES NOTED BELOW ARE IN US DOLLARS
Plan Packages
CAD Package $2605
PDF File Format (recommended) $1605
3-Set Package $1740

Which Plan Package is Right for Me?

Other Available Options
Right Reading Reverse $225
Additional Sets $65
Unlimited Build License $400

What Other Options Do I Need?

Foundation Options
Standard Foundation: Floating Slab No additional fee
Monolithic Slab $395
Shipping and Handling Home Plans Project Plans
US Regular (7-10 business days) $35 $25
US Priority (3-5 business days) $55 $45
US Express (1-2 business days) $75 $65
Canada Standard (8-12 business days) $50 $40
Canada Express (3-5 business days) $100 $80
Express Orders need to be placed before 11am CST - Alaska and Hawaii express only
*Shipping charges for to/from and may be subject to custom's fees and/or tax/duties.
For overseas/international call, fax, or email customerservice@designamerica.com for shipping costs.
Building Aids - Add $2 shipping for each item
Legal Kit $35
Plumbing Kit (not plan specific) $30
Electrical Kit (not plan specific) $30
Framing Kit (not plan specific) $30
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $60

Which Building Aids Do I Need?
