Piketon Country Two-Car Garage

PROJECT PLAN #593-113D-7503

view plan pricing

tab green left curve Quick Details tab green right curve
  • 713 Total Square Feet
  • 1st Floor 112
  • 2nd Floor 601
  • Width: 28'-0" Depth: 26'-0"
  • 1 Bedrooms
  • 1 Full Bath
  • Door 1: 16x7
  • Standard Foundation - Floating Slab
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Ask The Professional
  • Share
tab green left curve Special Features tab green right curve
  • Building height - 28'-2"
  • Roof pitch - 12/12
  • Ceiling heights -
  • First floor - 9'-6"
  • Second floor - 8'
  • 16' x 7' overhead door
  • 2" x 6" exterior walls
  • A cheerful bay window brightens the area designated for the dining table
  • A spacious full bath includes both an oversized tub and a separate shower
  • The large bedroom enjoys the organization and size of the walk-in closet

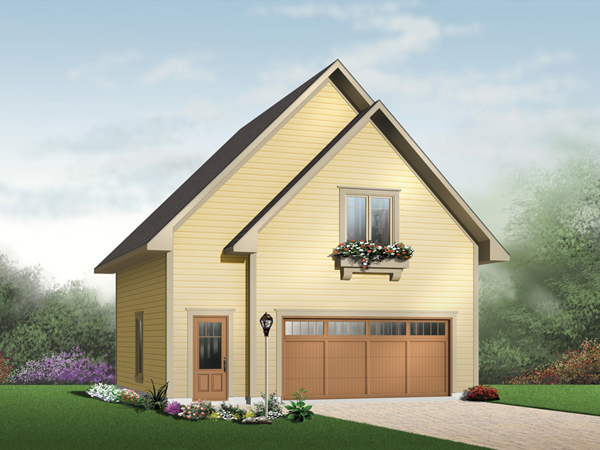

Two-car apartment garage with double gable roof and window with planter box belowBuilding Plans First Floor - 113D-7503 | House Plans and MoreBuilding Plans Second Floor - 113D-7503 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

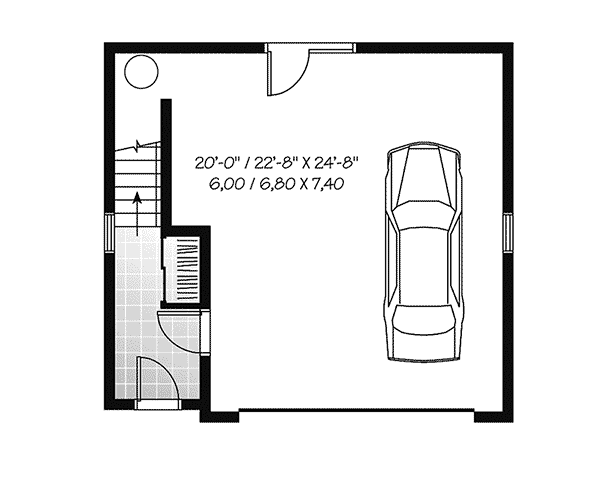

First Floor

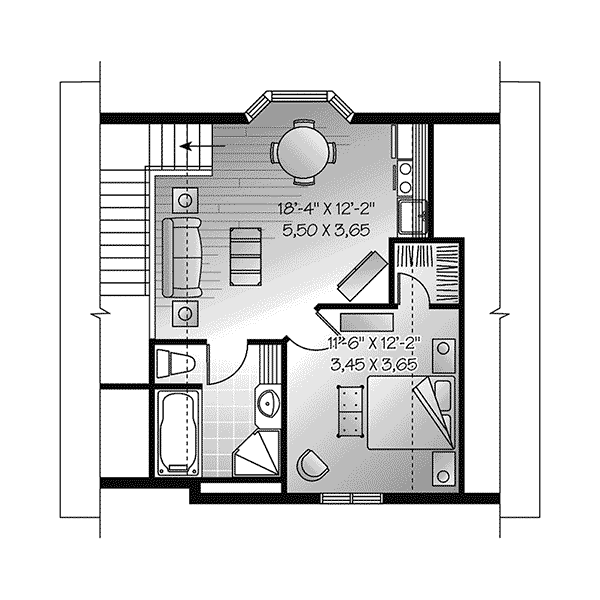

Second Floor

ALL PRICES NOTED BELOW ARE IN US DOLLARS
Plan Packages
CAD Package $1600
Reproducible Master (recommended) $885
PDF File Format $885
8-Set Package $785
5-Set Package (minimum construction package) $685

Which Plan Package is right for me?


Other Available Options
Right Reading Reverse $150
Additional Sets $45
Material List (recommended) $125

What Other Options Do I Need?

Shipping and Handling Home Plans Project Plans
US Regular (7-10 business days) $25 $15
US Priority (3-5 business days) $45 $35
US Express (1-2 business days) $60 $50
Canada Standard (8-12 business days) $45 $35
Canada Express (3-5 business days) $95 $75
Express Orders need to be placed before 11am CST - Alaska and Hawaii express only
*Shipping charges for to/from and may be subject to custom's fees and/or tax/duties.
For overseas/international call, fax, or email customerservice@designamerica.com for shipping costs.

Building Aids - Add $2 shipping for each item
Legal Kit $35
Plumbing Kit (not plan specific) $20
Electrical Kit (not plan specific) $20
Framing Kit (not plan specific) $20
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $40

Which Building Aids Do I Need?
