Haviland One-Car Garage

PROJECT PLAN #593-113D-6007

view plan pricing
Do you need an estimated cost to build?

You will receive a detailed construction cost breakdown report based on your selections and where you plan to build.

REQUEST YOUR REPORT

tab green left curve Quick Details tab green right curve
  • Width: 15'-0" Depth: 23'-0"
  • Door 1: 10x7
  • Standard Foundation - Floating Slab
  • Alternative Foundations - Monolithic Slab
  • Max Ridge Height - 20' 0"
  • Ceiling Heights:
    Main Floor - 8' 0"
    Second Floor - 7' 0"
  • Exterior Wall Framing:
    Main Floor Studs - 2" x 6"
  • Roof Pitch - 14/12 Main
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Add To Favorites
  • Ask The Professional
  • Share
    Share on Facebook Tweet this on Twitter Pin this on Pinterest
tab green left curve Special Features tab green right curve
  • Building height - 20'
  • Roof pitch - 14/12
  • Ceiling heights -
  • First floor - 8'
  • Second floor - 7'
  • 10' x 7' overhead door
  • The first floor has 345 square feet and the second floor has 261 square feet
  • 2" x 6" exterior walls
  • Decorative moldings and shutters
  • Additional space is perfect for yard equipment storage
  • Easy, functional design
  • Second level storage

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.

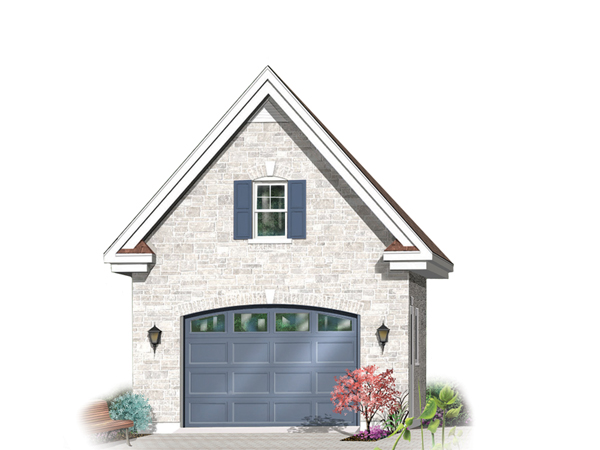

Decorative 1-Car Garage


Decorative one-car garage with decorative window above garage doorBuilding Plans First Floor - Haviland One-Car Garage 113D-6007 | House Plans and MoreBuilding Plans Second Floor - Haviland One-Car Garage 113D-6007 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

First Floor

Building Plans Project Plan First Floor 113D-6007

Second Floor

Building Plans Project Plan Second Floor 113D-6007
ALL PRICES NOTED BELOW ARE IN US DOLLARS
Plan Packages
CAD Package $965
PDF File Format (recommended) $515
3-Set Package $625

Which Plan Package is Right for Me?

Other Available Options
Right Reading Reverse $150
Additional Sets $65
Unlimited Build License $400

What Other Options Do I Need?

Foundation Options
Standard Foundation: Floating Slab No additional fee
Monolithic Slab No additional fee
Shipping and Handling Home Plans Project Plans
US Regular (7-10 business days) $35 $25
US Priority (3-5 business days) $55 $45
US Express (1-2 business days) $75 $65
Canada Standard (8-12 business days) $50 $40
Canada Express (3-5 business days) $100 $80
Express Orders need to be placed before 11am CST - Alaska and Hawaii express only
*Shipping charges for to/from and may be subject to custom's fees and/or tax/duties.
For overseas/international call, fax, or email customerservice@designamerica.com for shipping costs.
Building Aids - Add $2 shipping for each item
Legal Kit $35
Plumbing Kit (not plan specific) $30
Electrical Kit (not plan specific) $30
Framing Kit (not plan specific) $30
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $60

Which Building Aids Do I Need?
