Parkman Garage Apartment

PROJECT PLAN #593-059D-7515

view plan pricing
Do you need an estimated cost to build?

You will receive a detailed construction cost breakdown report based on your selections and where you plan to build.

REQUEST YOUR REPORT

tab green left curve Quick Details tab green right curve
  • 701 Total Square Feet
  • 2nd Floor 701
  • Width: 31'-0" Depth: 28'-0"
  • 1 Bedrooms
  • 1 Full Bath
  • Door 1: 9x7
  • Door 2: 9x7
  • Standard Foundation - Floating Slab
  • Max Ridge Height - 28' 0"
  • Ceiling Heights:
    Main Floor - 9' 0"
    Second Floor - 8' 0"
  • Exterior Wall Framing:
    Main Floor Studs - 2" x 4"
  • Roof Pitch - 8/12, 10/12
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Add To Favorites
  • Ask The Professional
  • Share
    Share on Facebook Tweet this on Twitter Pin this on Pinterest
tab green left curve Special Features tab green right curve
  • Building height - 28'
  • Roof pitches - 8/12, 10/12
  • Ceiling heights -
  • First floor - 9'
  • Second floor - 8'
  • Two 9' x 7' overhead doors
  • Large windows brighten the adjoining dining and great rooms

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.

2-Car Garage Apartment

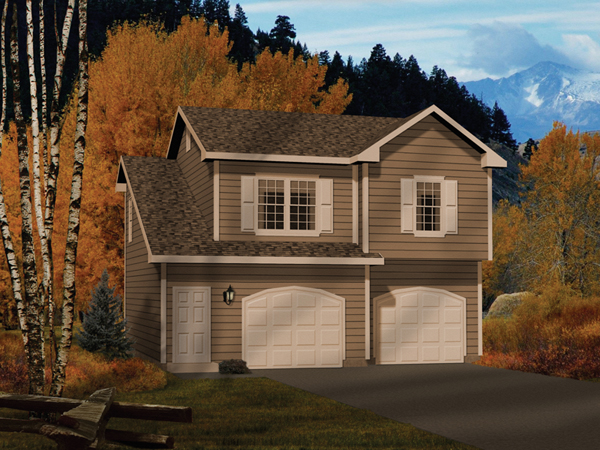

Classic residential style graces this two-story two-car garage apartmentBuilding Plans First Floor - Parkman Garage Apartment 059D-7515 | House Plans and MoreBuilding Plans Second Floor - Parkman Garage Apartment 059D-7515 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

First Floor

Building Plans Project Plan First Floor 059D-7515

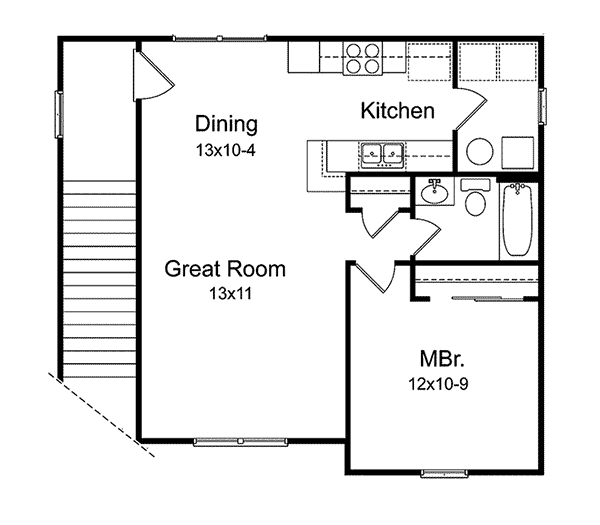

Second Floor

Building Plans Project Plan Second Floor 059D-7515
