Madelon Garage Apartment

PROJECT PLAN #593-059D-7508

view plan pricing

tab green left curve Quick Details tab green right curve
  • 1240 Total Square Feet
  • 1st Floor 288
  • 2nd Floor 952
  • Width: 34'-0" Depth: 32'-0"
  • 2 Bedrooms
  • 1 Full Bath
  • Door 1: 9x8
  • Door 2: 9x8
  • Standard Foundation - Floating Slab
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Ask The Professional
  • Share
tab green left curve Special Features tab green right curve
  • Building height - 27'
  • Roof pitches - 6/12, 9/12, 12/12
  • Ceiling heights -
  • First floor - 9'
  • Second floor - 8'
  • Two 9' x 8' overhead doors
  • Kitchen/breakfast area combine for added spaciousness
  • Sloped ceiling adds appeal in sitting area
  • Complete list of materials

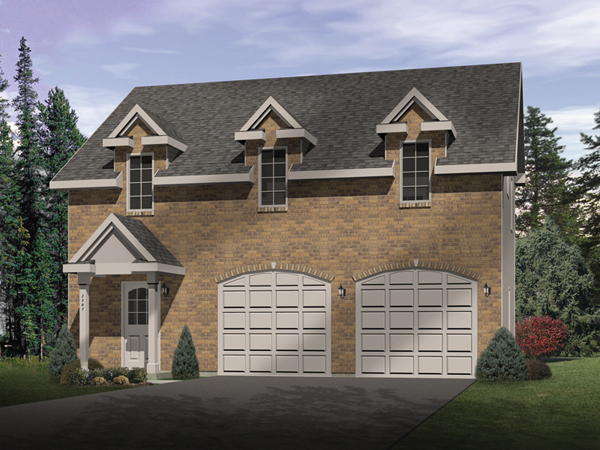

Unique apartment garage has space for two cars and striking gabled windows and covered porchBuilding Plans First Floor - 059D-7508 | House Plans and MoreBuilding Plans Second Floor - 059D-7508 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

First Floor

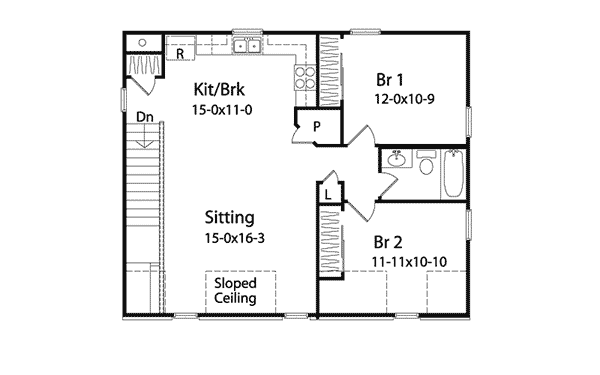

Second Floor
