Payton Two-Car Garage Apartment

PROJECT PLAN #593-059D-7503

view plan pricing

tab green left curve Quick Details tab green right curve
  • 840 Total Square Feet
  • 2nd Floor 840
  • Width: 30'-0" Depth: 29'-0"
  • 1 Bedrooms
  • 1 Full Bath
  • Door 1: 9x7
  • Door 2: 9x7
  • Standard Foundation - Floating Slab
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Ask The Professional
  • Share
tab green left curve Special Features tab green right curve
  • Building height - 25'-8"
  • Roof pitch - 7/12
  • Ceiling heights -
  • First floor - 8'
  • Second floor - 8'
  • Two 9' x 7' overhead doors
  • Cozy covered entry
  • Complete list of materials

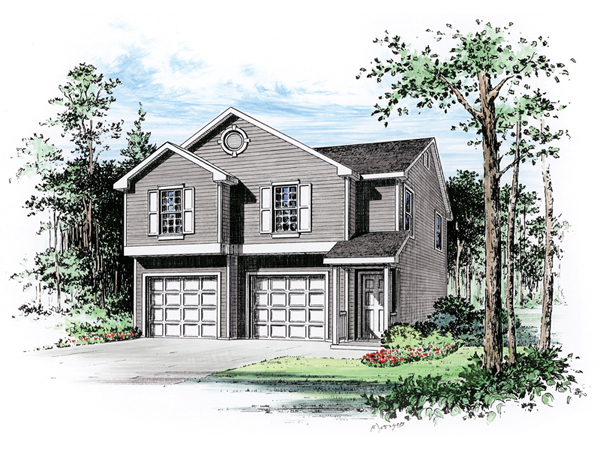

Two-story apartment garage for two card with pleasant residential feelBuilding Plans First Floor - 059D-7503 | House Plans and MoreBuilding Plans Second Floor - 059D-7503 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

First Floor

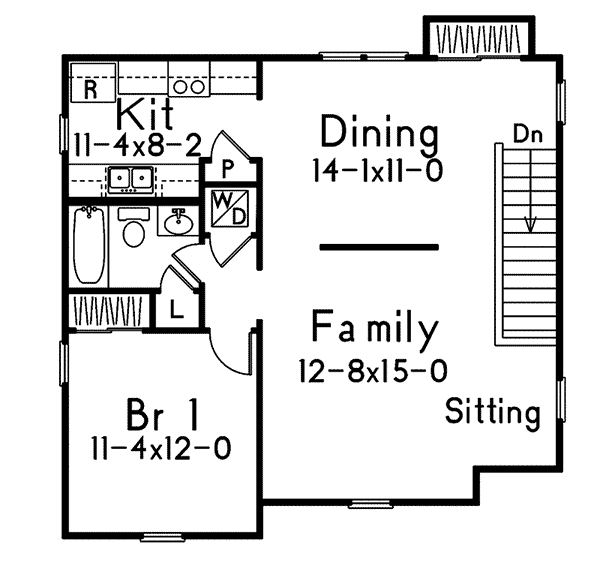

Second Floor

ALL PRICES NOTED BELOW ARE IN US DOLLARS
Plan Packages
CAD Package $450
Reproducible Master (recommended) $300
PDF File Format $300
1-Set Package $250

Which Plan Package is right for me?


Other Available Options
Right Reading Reverse $75
Additional Sets $30
Material List (recommended) $125

What Other Options Do I Need?

Shipping and Handling Home Plans Project Plans
US Regular (7-10 business days) $25 $15
US Priority (3-5 business days) $45 $35
US Express (1-2 business days) $60 $50
Canada Standard (8-12 business days) $45 $35
Canada Express (3-5 business days) $95 $75
Express Orders need to be placed before 11am CST - Alaska and Hawaii express only
*Shipping charges for to/from and may be subject to custom's fees an/or tax/duties.
Overseas shipping/international call, fax, or email plans@hdainc.com for shipping costs.

Building Aids - Add $2 shipping for each item
Legal Kit $35
Plumbing Kit (not plan specific) $20
Electrical Kit (not plan specific) $20
Framing Kit (not plan specific) $20
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $40

Which Building Aids Do I Need?
