Apple Farm Apartment Garage

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.


PROJECT PLAN #593-009D-7536

tab green left curve Quick Details tab green right curve
  • 1091 Total Square Feet
  • 1st Floor 357
  • 2nd Floor 734
  • Width: 30'-8" Depth: 36'-0"
  • 1 Bedrooms
  • 1 Full Bath
  • Door 1: 18x7
  • Standard Foundation - Slab
tab green left curve Additional Options tab green right curve

Save this plan to:

Share on Facebook Tweet this on Twitter Pin this on Pinterest Recommend on Google Add to Stumbleupon Digg It! Share on LinkedIn Share on Tumblr

tab green left curve Special Features tab green right curve
  • Building height - 25'-6"
  • Roof pitch - 6/12
  • Ceiling heights -
  • First floor - 8'
  • Second floor - 8'
  • 18' x 7' overhead door

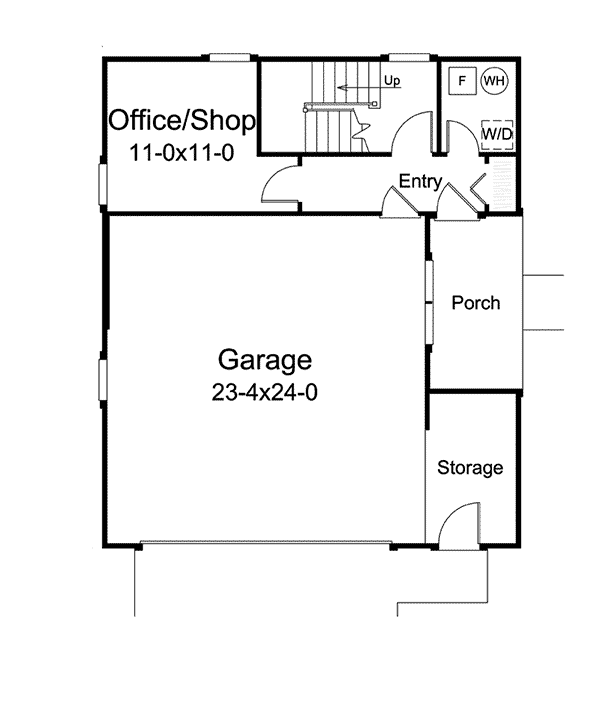

  • A large side covered porch invites you into the entry hall featuring a coat closet, room for an office or shop, a mechanical room and stair to ling area above

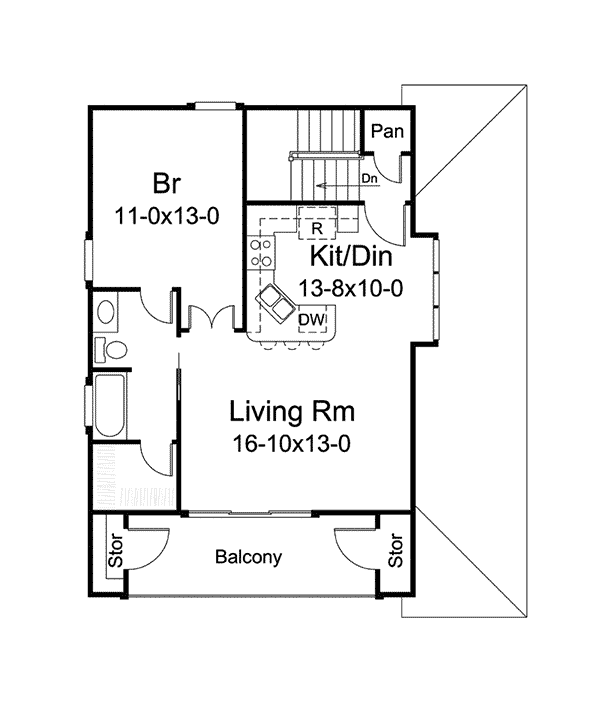

  • The second floor living room, with 9' sliding door to covered outdoor balcony, is open to a U-shaped kitchen with dining bay, built-in pantry and snack counter
  • A roomy compartmented bath with walk-in closet adjoins the bedroom which features double entry doors
  • Complete list of materials
tab green left curve Similar House Plan Styles tab green right curve
tab green left curve Related Plans tab green right curve
HOME PLAN #007D-0242

First Floor

Second Floor

Plan Packages (PRICES in US $)
CAD Package $1000
Reproducible Master (recommended) $610
PDF File Format $610
8-Set Package $510
5-Set Package (minimum construction package) $410
1-Set Package $310

Click here for help.  Which Plan Package is right for me?


Other Available Options (PRICES in US $)
Mirror Reverse $15
Additional Sets $45

Click here for help.  What Other Options Do I Need?


Building Aids (PRICES in US $)
Legal Kit $35
Plumbing Kit (not plan specific) $20
Electrical Kit (not plan specific) $20
Framing Kit (not plan specific) $20
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $40

Click here for help.  Which Building Aids Do I Need?
