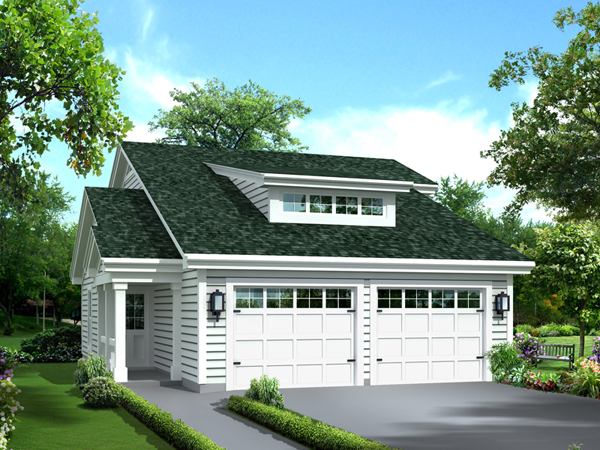

Arapaho Hill Apartment Garage

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.


PROJECT PLAN #593-009D-7535

tab green left curve Quick Details tab green right curve
  • 1086 Total Square Feet

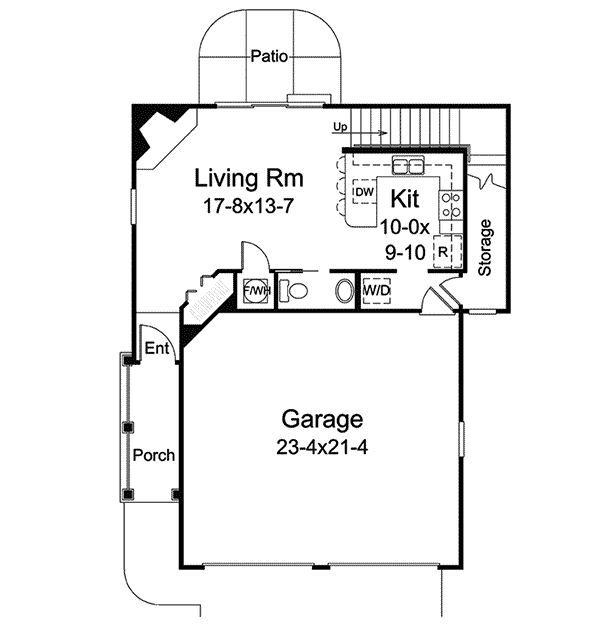

  • 1st Floor 591

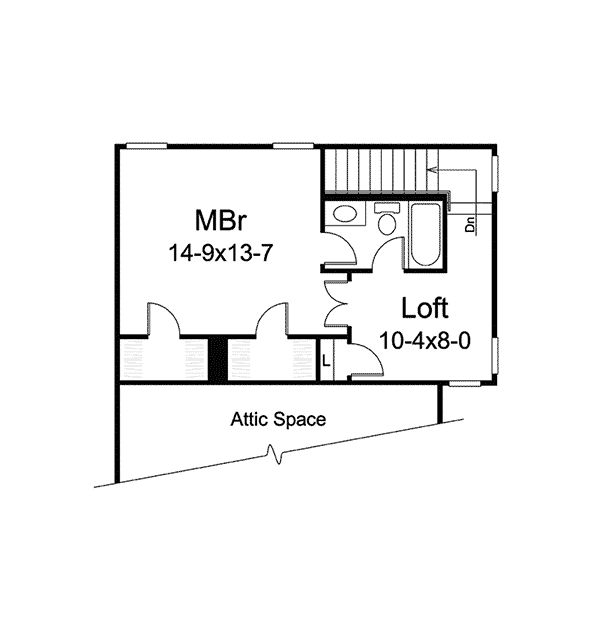

  • 2nd Floor 495
  • Width: 32'-8" Depth: 39'-4"
  • 1 Bedrooms
  • 1 Full Bath, 1 Half Bath
  • Door 1: 9x7
  • Door 2: 9x7
  • Standard Foundation - Slab
tab green left curve Additional Options tab green right curve

Save this plan to:

Share on Facebook Tweet this on Twitter Pin this on Pinterest Recommend on Google Add to Stumbleupon Digg It! Share on LinkedIn Share on Tumblr

tab green left curve Special Features tab green right curve
  • Building height - 21'-6"
  • Roof pitches - 3/12, 5/12
  • Ceiling heights -
  • First floor - 8'
  • Second floor - 8'
  • Two 9' x 7' overhead doors
  • Open to the living room, the U-shaped kitchen has a snack bar and adjacent laundry area with large storage pantry
  • Double doors, clerestory roof and a columned porch all add a sense of charm and class
  • Complete list of materials
tab green left curve Similar House Plan Styles tab green right curve
tab green left curve Related Plans tab green right curve
HOME PLAN #007D-0241

First Floor

Second Floor

Plan Packages (PRICES in US $)
CAD Package $1000
Reproducible Master (recommended) $610
PDF File Format $610
8-Set Package $510
5-Set Package (minimum construction package) $410
1-Set Package $310

Click here for help.  Which Plan Package is right for me?


Other Available Options (PRICES in US $)
Mirror Reverse $15
Additional Sets $45

Click here for help.  What Other Options Do I Need?


Building Aids (PRICES in US $)
Legal Kit $35
Plumbing Kit (not plan specific) $20
Electrical Kit (not plan specific) $20
Framing Kit (not plan specific) $20
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $40

Click here for help.  Which Building Aids Do I Need?
