Sabina Garage With Shop

PROJECT PLAN #593-009D-7523

view plan pricing
Do you need an estimated cost to build?

You will receive a detailed construction cost breakdown report based on your selections and where you plan to build.

REQUEST YOUR REPORT

tab green left curve Quick Details tab green right curve
  • 647 Total Square Feet
  • 1st Floor 384
  • Width: 24'-0" Depth: 40'-8"
  • 1 Half Bath
  • Door 1: 18x7
  • Standard Foundation - Basement
  • Max Ridge Height - 17' 6"
  • Ceiling Heights:
    Main Floor - 8' 0"
  • Roof Pitch - 8/12
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Add To Favorites
  • Ask The Professional
  • Share
    Share on Facebook Tweet this on Twitter Pin this on Pinterest
tab green left curve Special Features tab green right curve
  • Building height - 17'-6"
  • Roof pitch - 8/12
  • Ceiling heights -
  • First floor - 8'
  • Lower level - 7'-10"
  • 18' x 7' overhead door

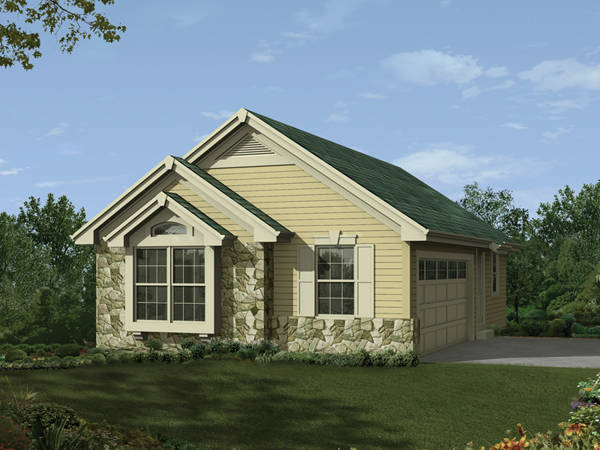

  • Multiple gables, box window and stonework add up to an attractive facade
  • Large multi-purpose room is perfect for a shop, studio or office and includes cabinetry, half bath, access to garage and stairs to the lower level safety shelter
  • The first floor has 384 square feet, and the storage/safety shelter is 263 square feet.

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.

Garage With Shop And Safety Shelter


Building Plans Front of Home - Sabina Garage With Shop 009D-7523 | House Plans and MoreBuilding Plans First Floor - Sabina Garage With Shop 009D-7523 | House Plans and MoreBuilding Plans Lower Level Floor - Sabina Garage With Shop 009D-7523 | House Plans and MoreBuilding Plans Rear Elevation - Sabina Garage With Shop 009D-7523 | House Plans and MoreBuilding Plans Rear Elevation - Sabina Garage With Shop 009D-7523 | House Plans and MoreBuilding Plans Right Elevation - Sabina Garage With Shop 009D-7523 | House Plans and MoreBuilding Plans Right Elevation - Sabina Garage With Shop 009D-7523 | House Plans and MoreBuilding Plans Left Elevation - Sabina Garage With Shop 009D-7523 | House Plans and MoreBuilding Plans Left Elevation - Sabina Garage With Shop 009D-7523 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

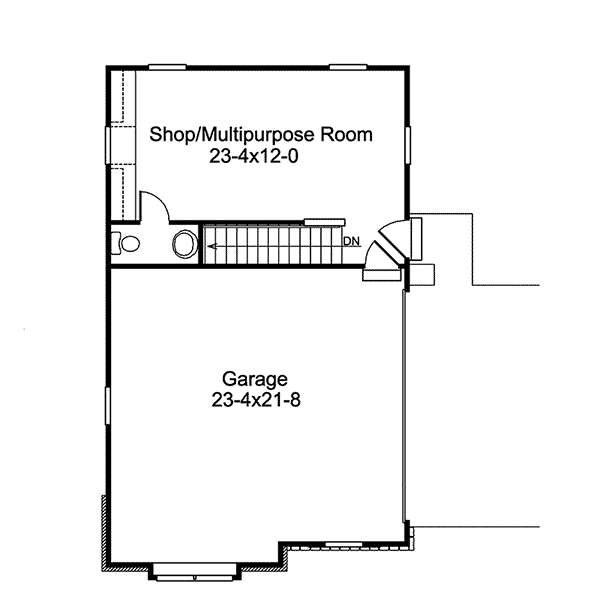

First Floor

Building Plans Project Plan First Floor 009D-7523

Lower Level

Building Plans Project Plan Lower Level 009D-7523
