Kitra 2-Car Garage With Shop

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.


PROJECT PLAN #593-009D-6017

tab green left curve Quick Details tab green right curve
  • Width: 38'-0" Depth: 24'-0"
  • Door 1: 9x7
  • Door 2: 9x7
  • Standard Foundation - Floating Slab
  • Alternative Foundations - Slab
tab green left curve Additional Options tab green right curve

Save this plan to:

Share on Facebook Tweet this on Twitter Pin this on Pinterest Recommend on Google Add to Stumbleupon Digg It! Share on LinkedIn Share on Tumblr

tab green left curve Special Features tab green right curve
  • Building height - 15'-4"
  • Roof pitches - 6/12, 10/12
  • Ceiling height - 9'
  • Two 9' x 7' overhead doors

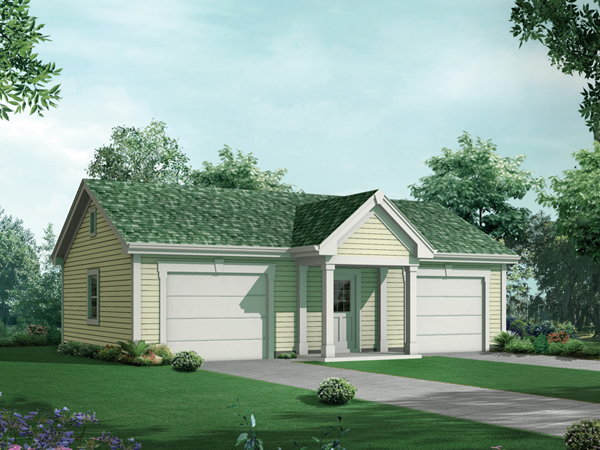

  • The stylish exterior includes decorative garage door casing with wood key and a porch for protection from the elements
  • A centrally located shop features built-it cabinetry with window above, plenty of wall space for shop machinery, access to both garages and a covered entry
  • Complete list of materials

First Floor

Image Of Large First Floor For House Plan 009D-6017
Plan Packages (PRICES in US $)
CAD Package $400
Reproducible Master (recommended) $250
PDF File Format $250
1-Set Package $200

Click here for help.  Which Plan Package is right for me?


Other Available Options (PRICES in US $)
Mirror Reverse $15
Additional Sets $25

Click here for help.  What Other Options Do I Need?


Building Aids (PRICES in US $)
Legal Kit $35
Plumbing Kit (not plan specific) $20
Electrical Kit (not plan specific) $20
Framing Kit (not plan specific) $20
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $40

Click here for help.  Which Building Aids Do I Need?
