Loni 3-Car Garage

PROJECT PLAN #593-002D-6044

view plan pricing
Do you need an estimated cost to build?

You will receive a detailed construction cost breakdown report based on your selections and where you plan to build.

REQUEST YOUR REPORT

tab green left curve Quick Details tab green right curve
  • 1680 Total Square Feet
  • 1st Floor 864
  • 2nd Floor 816
  • Width: 36'-0" Depth: 24'-0"
  • Door 1: 9x7
  • Door 2: 9x7
  • Door 3: 9x7
  • Standard Foundation - Floating Slab
  • Max Ridge Height - 20' 8"
  • Ceiling Heights:
    Main Floor - 8' 0"
    Second Floor - 7' 6"
  • Exterior Wall Framing:
    Main Floor Studs - 2" x 4"
  • Roof Pitch - 12/12
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Add To Favorites
  • Ask The Professional
  • Share
    Share on Facebook Tweet this on Twitter Pin this on Pinterest
tab green left curve Special Features tab green right curve
  • Building height - 20'-8"
  • Roof pitch - 12/12
  • Ceiling height - 8'
  • Loft ceiling height - 7'-6"
  • Three 9' x 7' overhead doors
  • Third stall in garage perfect for boat storage
  • Generous loft space for storage or studio
  • Complete list of materials
  • Step-by-step instructions

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.

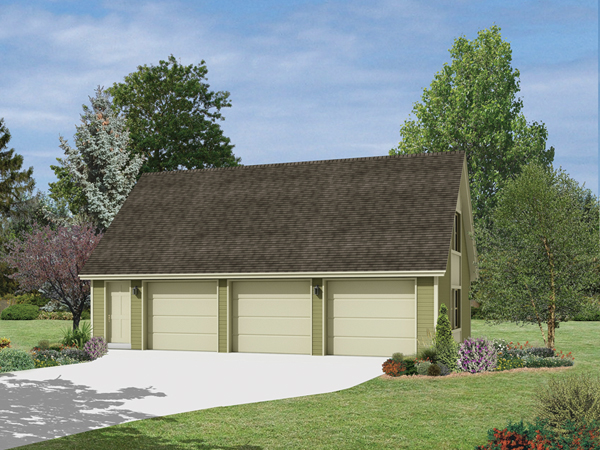

3-Car Garage with Loft


This three-car garage has a simplistic style design that would work particularly well with a modern home planBuilding Plans First Floor - Loni 3-Car Garage 002D-6044 | House Plans and MoreBuilding Plans Loft - Loni 3-Car Garage 002D-6044 | House Plans and More
Need to flip the floor plan?
ViewMirrorReverse

First Floor

Building Plans Project Plan First Floor 002D-6044

Loft

Building Plans Project Plan Loft 002D-6044
ALL PRICES NOTED BELOW ARE IN US DOLLARS
Plan Packages
CAD Package $850
PDF File Format (recommended) $400
5-Set Package $450
1-Set Package $400

Which Plan Package is Right for Me?

Other Available Options
Right Reading Reverse $75
Additional Sets $50
Add PDF to Printed Plan Package $75
Unlimited Build License $200

What Other Options Do I Need?

Foundation Options
Standard Foundation: Floating Slab No additional fee
Shipping and Handling Home Plans Project Plans
US Regular (7-10 business days) $35 $25
US Priority (3-5 business days) $55 $45
US Express (1-2 business days) $75 $65
Canada Standard (8-12 business days) $50 $40
Canada Express (3-5 business days) $100 $80
Express Orders need to be placed before 11am CST - Alaska and Hawaii express only
*Shipping charges for to/from and may be subject to custom's fees and/or tax/duties.
For overseas/international call, fax, or email customerservice@designamerica.com for shipping costs.
Building Aids - Add $2 shipping for each item
Legal Kit $35
Plumbing Kit (not plan specific) $30
Electrical Kit (not plan specific) $30
Framing Kit (not plan specific) $30
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $60

Which Building Aids Do I Need?
