Sommerton Garage

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.


PROJECT PLAN #593-117D-6000

tab green left curve Quick Details tab green right curve
  • Width: 30'-0" Depth: 25'-0"
  • Door 1: 16x8
  • Standard Foundation - Slab
tab green left curve Additional Options tab green right curve

Save this plan to:

Share on Facebook Tweet this on Twitter Pin this on Pinterest Recommend on Google Add to Stumbleupon Digg It! Share on LinkedIn Share on Tumblr

tab green left curve Special Features tab green right curve
  • Building height - 24'
  • Roof pitch - 12/12
  • Ceiling heights -
  • First floor - 9'
  • Second floor - 8'
  • 16' x 8' overhead door
  • The garage has 700 square feet on the first floor and 358 square feet on the second floor
  • 2" x 6" exterior walls

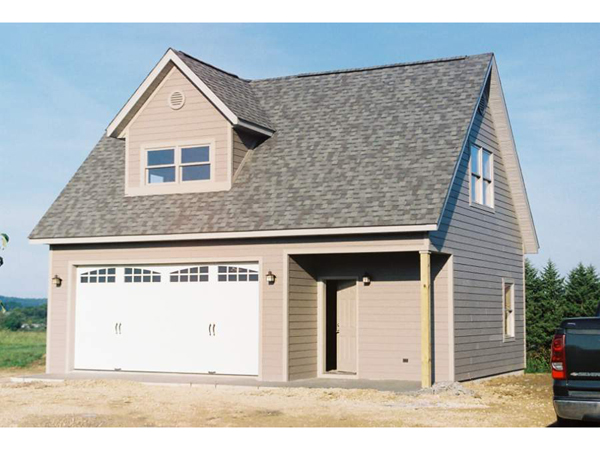

  • A shingle roof and large dormer add style to the exterior of this two-car garage structure with workshop
  • The workshop includes ladder access to the storage loft above
  • A quaint covered front porch offers a great place for taking a break from a project

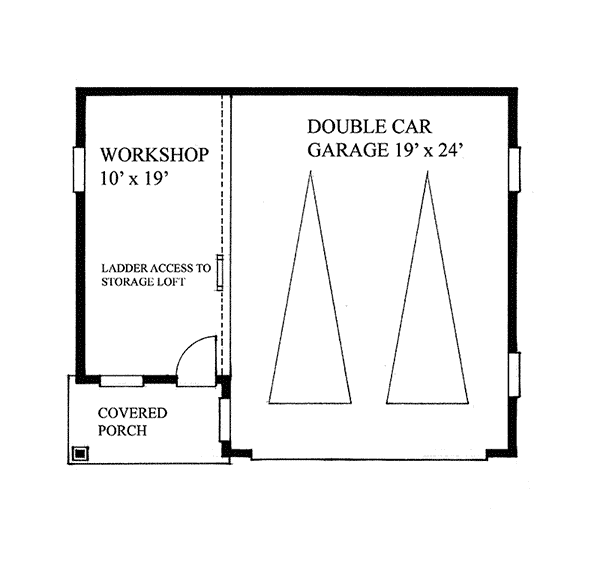

First Floor

Image Of Large First Floor For House Plan 117D-6000

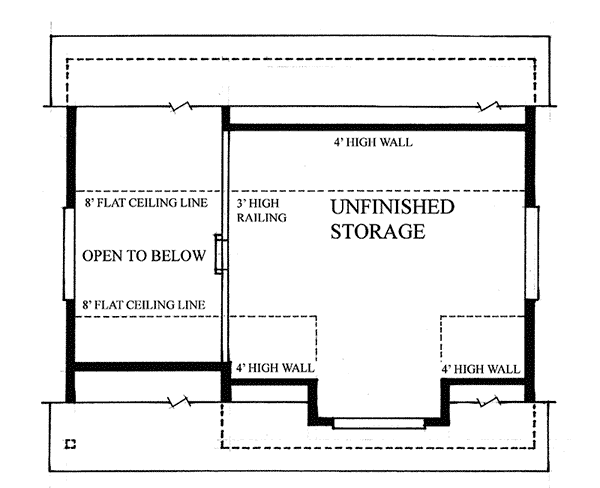

Second Floor

Image Of Second Floor For House Plan 117D-6000
Plan Packages (PRICES in US $)
CAD Package $1000
Reproducible Master (recommended) $610
PDF File Format $610
1-Set Package $310

Click here for help.  Which Plan Package is right for me?


Other Available Options (PRICES in US $)
Mirror Reverse $15
Additional Sets $45
Material List (recommended) $125

Click here for help.  What Other Options Do I Need?


Building Aids (PRICES in US $)
Legal Kit $35
Plumbing Kit (not plan specific) $20
Electrical Kit (not plan specific) $20
Framing Kit (not plan specific) $20
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $40

Click here for help.  Which Building Aids Do I Need?
