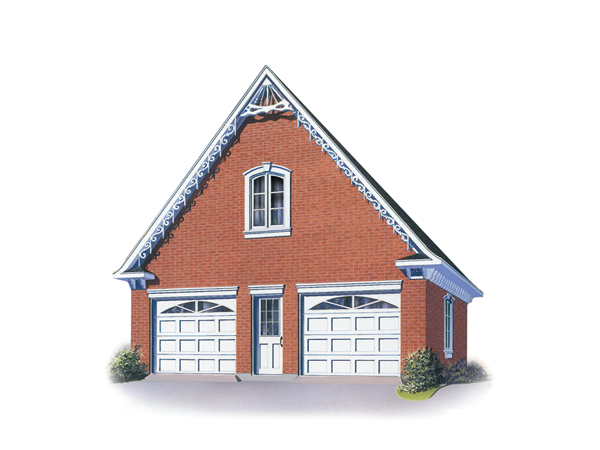

Kiara Pond Victorian Garage

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.


PROJECT PLAN #593-113D-6008

tab green left curve Quick Details tab green right curve
  • Width: 28'-0" Depth: 30'-0"
  • Door 1: 9x7
  • Door 2: 9x7
  • Standard Foundation - Floating Slab
tab green left curve Additional Options tab green right curve

Save this plan to:

Share on Facebook Tweet this on Twitter Pin this on Pinterest Recommend on Google Add to Stumbleupon Digg It! Share on LinkedIn Share on Tumblr

tab green left curve Special Features tab green right curve
  • Building height - 25'-8"
  • Roof pitch - 14/12
  • Ceiling heights -
  • First floor - 8'
  • Second floor - 8'
  • Two 9' x 7' overhead doors
  • Garage has 840 square feet on the first floor and 560 square feet on the second floor
  • 2" x 6" exterior walls
  • Convenient service front door
  • Loft above the garage provides for additional storage
  • Decorative moldings add curb appeal

First Floor

Image Of Large First Floor For House Plan 113D-6008

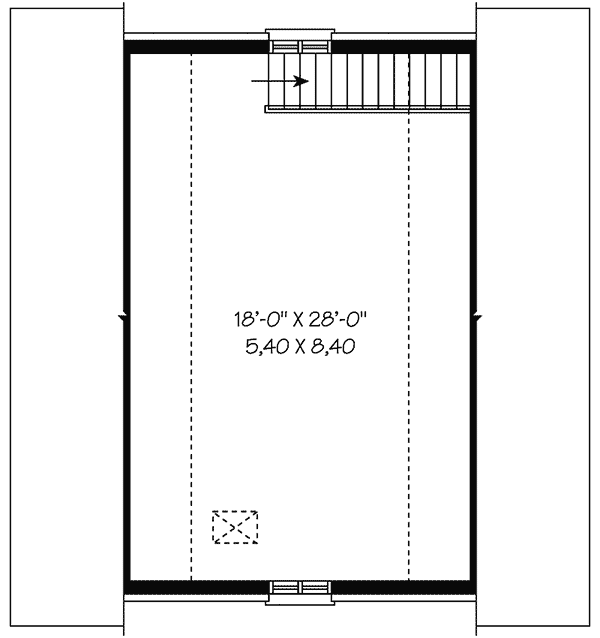

Second Floor

Image Of Second Floor For House Plan 113D-6008
Plan Packages (PRICES in US $)
CAD Package $450
Reproducible Master (recommended) $300
PDF File Format $300
3-Set Package $250

Click here for help.  Which Plan Package is right for me?


Other Available Options (PRICES in US $)
Right Reading Reverse $75
Additional Sets $30
Material List (recommended) $125

Click here for help.  What Other Options Do I Need?


Building Aids (PRICES in US $)
Legal Kit $35
Plumbing Kit (not plan specific) $20
Electrical Kit (not plan specific) $20
Framing Kit (not plan specific) $20
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $40

Click here for help.  Which Building Aids Do I Need?
