Jordan 2-Car Apartment Garage

PROJECT PLAN #593-063D-7502

view plan pricing

tab green left curve Quick Details tab green right curve
  • 588 Total Square Feet
  • 2nd Floor 588
  • Width: 28'-0" Depth: 24'-0"
  • 1 Bedrooms
  • 1 Full Bath
  • Door 1: 9x7
  • Door 2: 9x7
  • Standard Foundation - Slab
tab green left curve Additional Options tab green right curve
  • Print This Project Plan
  • Customize A Garage
  • Ask The Professional
  • Share
tab green left curve Special Features tab green right curve
  • Building height - 23'
  • Roof pitches - 4/12, 12/12
  • Ceiling heights -
  • First floor - 8’
  • Second floor - 8’
  • Two 9’ x 7’ overhead doors
  • Charming dormers add character to exterior
  • Convenient laundry space in kitchen
  • Charming dormers add character to the exterior of this apartment garage. The apartment space also features a convenient laundry space in the kitchen. The kitchen/dining area has large windows for added sunlight, a double sink, space for a dishwasher and even a laundry closet for a stckable washer and dryer unit. The bedroom has a pleasant dromer style window for added charm.
2-Car Garage Apartment

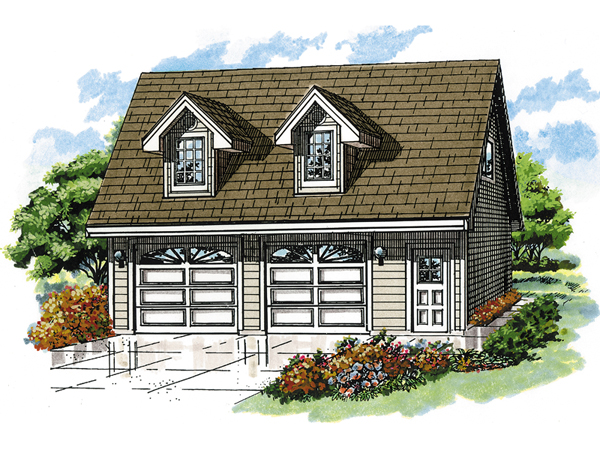

Two-car garage has twin dormers on roofBuilding Plans First Floor - 063D-7502 | House Plans and MoreBuilding Plans Second Floor - 063D-7502 | House Plans and More
Need to flip the floor plan?

First Floor

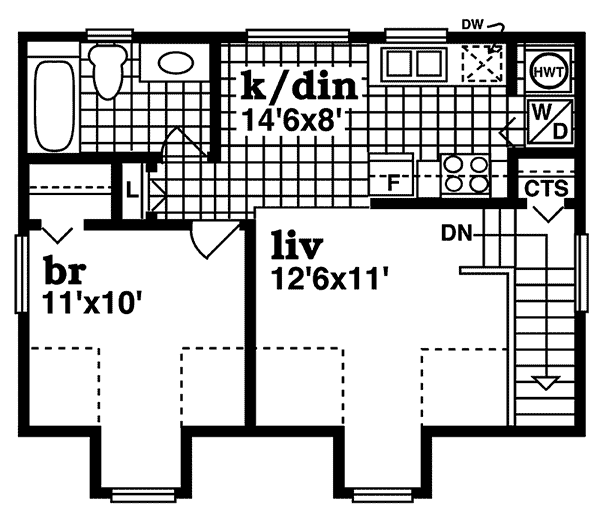

Second Floor
