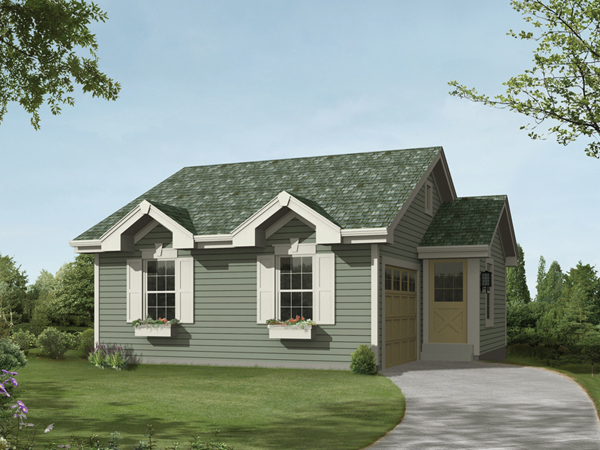

Rainier Bend Cottage Home

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.


PROJECT PLAN #593-009D-7520

tab green left curve Quick Details tab green right curve
  • 771 Total Square Feet
  • 1st Floor 413
  • Width: 26'-4" Depth: 28'-0"
  • 1 Bedrooms
  • 1 Full Bath, 1 Half Bath
  • Door 1: 9x7
  • Standard Foundation - Walkout Basement
tab green left curve Additional Options tab green right curve

Save this plan to:

Share on Facebook Tweet this on Twitter Pin this on Pinterest Recommend on Google Add to Stumbleupon Digg It! Share on LinkedIn Share on Tumblr

tab green left curve Special Features tab green right curve
  • Building height - 17'
  • Roof pitches - 6.5/12, 8/12
  • Ceiling heights -
  • First floor - 8'
  • Second floor - 7'-10'
  • 9' x 7' overhead door
  • The living room includes a vaulted ceiling, separate entry with guest closet and glass doors to the rear deck
  • Complete list of materials

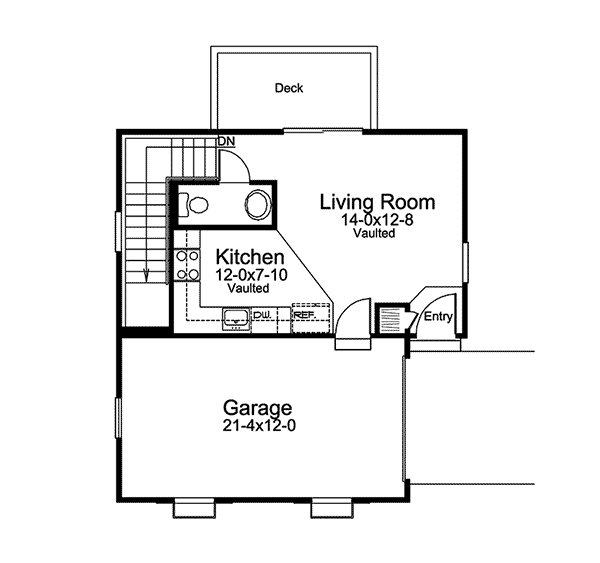

First Floor

Image Of Large First Floor For House Plan 009D-7520

Lower Level

Image Of Lower Level For House Plan 009D-7520
Plan Packages (PRICES in US $)
CAD Package $1000
Reproducible Master (recommended) $610
PDF File Format $610
8-Set Package $510
5-Set Package (minimum construction package) $410
1-Set Package $310

Click here for help.  Which Plan Package is right for me?


Other Available Options (PRICES in US $)
Mirror Reverse $15
Additional Sets $45

Click here for help.  What Other Options Do I Need?


Building Aids (PRICES in US $)
Legal Kit $35
Plumbing Kit (not plan specific) $20
Electrical Kit (not plan specific) $20
Framing Kit (not plan specific) $20
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $40

Click here for help.  Which Building Aids Do I Need?
