Jarvis Island Cottage Home

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.


PROJECT PLAN #593-009D-7503

tab green left curve Quick Details tab green right curve
  • 647 Total Square Feet
  • 1st Floor 647
  • Width: 36'-0" Depth: 17'-0"
  • 1 Bedrooms
  • 1 Full Bath
  • Standard Foundation - Crawl Space
tab green left curve Additional Options tab green right curve

Save this plan to:

Share on Facebook Tweet this on Twitter Pin this on Pinterest Recommend on Google Add to Stumbleupon Digg It! Share on LinkedIn Share on Tumblr

tab green left curve Special Features tab green right curve
  • Building height - 17'
  • Roof pitch - 10/12
  • Ceiling height - 8'
  • Large vaulted room for living/sleeping with plant shelves on each end, stone fireplace and sunken bath
  • Complete list of materials
tab green left curve Similar House Plan Styles tab green right curve

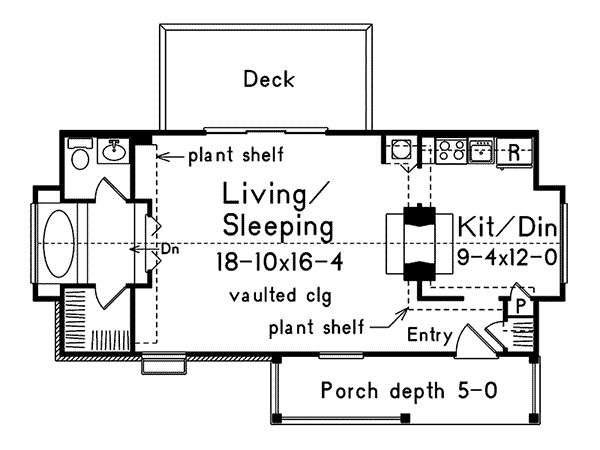

First Floor

Image Of Large First Floor For House Plan 009D-7503
Plan Packages (PRICES in US $)
CAD Package $1000
Reproducible Master (recommended) $610
PDF File Format $610
8-Set Package $510
5-Set Package (minimum construction package) $410
1-Set Package $310

Click here for help.  Which Plan Package is right for me?


Other Available Options (PRICES in US $)
Mirror Reverse $15
Additional Sets $45

Click here for help.  What Other Options Do I Need?


Building Aids (PRICES in US $)
Legal Kit $35
Plumbing Kit (not plan specific) $20
Electrical Kit (not plan specific) $20
Framing Kit (not plan specific) $20
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $40

Click here for help.  Which Building Aids Do I Need?
