Carmel Place Atrium Ranch Home

HOUSE PLAN #592-007D-0187

view plan pricing
Do you need an estimated cost to build?

You will recieved a detailed construction cost breakdown report based on your selections and where you plan to build.


Plan Details
  • 2560 Total Heated Square Feet
    • 1st Floor: 2560
  • Width: 84'-4" Depth: 54'-4"
  • 3 Bedrooms
  • 2 Full Baths, 1 Half Bath
  • 3-Car Garage
    • 3-Car Attached, Side Entry
      • Size: 33'-4" x 23'-4"
      • Door 1: 9x8
      • Door 2: 16x8
  • Standard Foundation: Walkout Basement
  • Exterior Wall Framing: 2" x 4"
Making Changes to Your Plans
Helpful Options
  • Design and Material Outline
  • Share
Plan Features
  • Breakfast Nook
  • Eating Bar
  • Daylight Basement
  • Walk-In Pantry
  • Walk-Out Basement
  • Covered Front Porch
  • Main Level Master Bedroom
  • Laundry and/or Utility Room
  • Atrium Home Plans
  • Indoor Balcony
  • Office and/or Study
  • Screened Porch/Three Season Room
  • PDF File
  • Vaulted and/or Volume Ceiling
  • Great Room
  • One-Story
  • Side-Entry
  • Island
  • Sloping and/or Hillside Lot
  • Wide Lot
  • Breakfast Bar
  • Atrium Ranch
  • Ultimate Kitchen Floor Plan
  • Open Floor Plans
  • Right Reading Reverse
Related Plans

HOME PLAN #007D-0206

HOME PLAN #007D-0136

HOME PLAN #007D-0010
Atrium Ranch Home Plan With Sunroom
The Carmel Place Atrium Ranch Home has 3 bedrooms, 2 full baths and 1 half bath. This delightful exterior has been created with the use of fancy brick and stone work, decorative walls with coach-lights and multiple gables. A large porch leads to a vaulted great room featuring an atrium, fireplace and a massive two-story window wall. The kitchen offers a snack bar peninsula, island counter and walk-in pantry. Both a covered and uncovered sundeck plus a sunroom are the many restful areas one may enjoy adjacent the bayed breakfast room. The master bedroom enjoys a coffered ceiling, bay window, plush bath and huge walk-in closet. The Carmel Place home plan can be many styles including Sunbelt Home Plans, Ranch House Plans and Traditional House Plans.
see more...

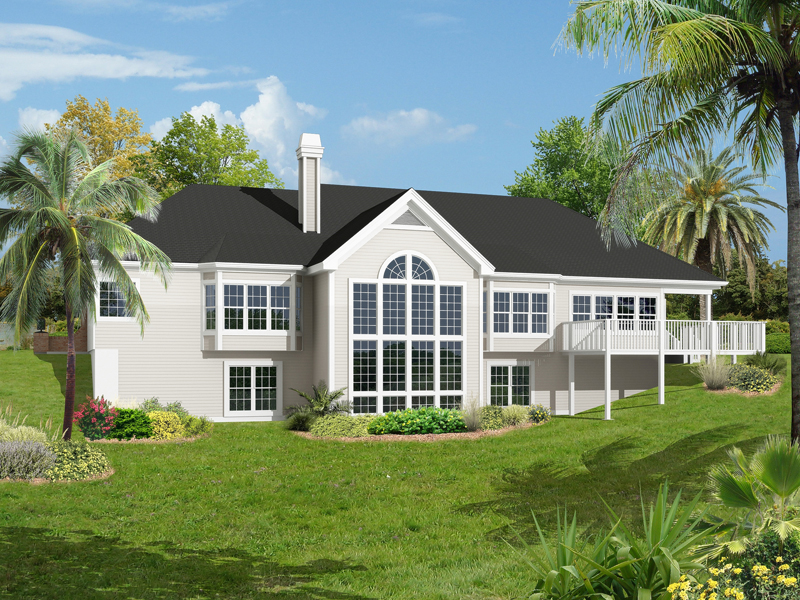

Fancy Stone Exterior Decorates This Florida HomeRanch House Plan Color Image of House - 007D-0187 | House Plans and MoreRanch House Plan First Floor - 007D-0187 | House Plans and MoreRanch House Plan Rear Elevation - 007D-0187 | House Plans and MoreRanch House Plan Right Elevation - 007D-0187 | House Plans and MoreRanch House Plan Left Elevation - 007D-0187 | House Plans and More
Need to flip the floor plan?

First Floor

Plan Packages
Reproducible Master (recommended) $1100
PDF File Format $1040
8-Set Package $930
5-Set Package (minimum construction package) $860
1-Set Package (study set - stamped not for construction) $800

Which Plan Package is Right for Me?

Other Available Options
Mirror Reverse $15
Additional Sets $50
Material List (recommended) $125

What Other Options Do I Need?

Shipping and Handling Home Plans Project Plans
US Regular (7-10 business days) $27 $17
US Priority (3-5 business days) $47 $37
US Express (1-2 business days) $67 $57
Canada Standard (8-12 business days) $50 $37
Canada Express (3-5 business days) $100 $77
Express Orders need to be placed before 11am CST - Alaska and Hawaii express only
*Shipping charges for to/from and may be subject to custom's fees and/or tax/duties.
For overseas/international call, fax, or email for shipping costs.
Building Aids - Add $2 shipping for each item
Legal Kit $35
Plumbing Kit (not plan specific) $20
Electrical Kit (not plan specific) $20
Framing Kit (not plan specific) $20
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $40

Which Building Aids Do I Need?
