Clayton Atrium Ranch Home

HOUSE PLAN #592-007D-0002


Plan Details
  • 3810 Total Square Feet
  • 1st Floor 3810
  • Width: 88'-0" Depth: 70'-8"
  • 3 Bedrooms
  • 2 Full Baths, 1 Half Bath
  • 3-Car Garage
    • 3-Car Attached, Side Entry
      • Size: 29'-4" x 21'-4"
      • Door 1: 8x7
      • Door 2: 16x7
  • Standard Foundation - Walkout Basement
Making Changes to Your Plans
Estimated Cost To Build This Home
The estimated cost to build is an average price per square foot for finished living square footage for a home built in your area, with typical contractor-grade materials, and typical services you would receive from a contractor, including labor costs, plumbing, electrical, basic/flat site preparation, etc. The estimated cost does not include things such as the lot on which you build, appliances, landscaping, bonus rooms, finished basements (unless a finished basement is included in the total living square footage), driveways, structural adjustments for earthquake/ severe weather/ local building codes, and other various limitations. The best thing to do before purchasing a plan is to contact local builders/ contractors and consult them about their pricing, as this will give you the most accurate pricing for your area. Exterior/interior finishes, cabinet materials, finish flooring etc. are all customer selected, so if you choose to use a higher grade material, it will have an effect on the base cost.
see more...
Postal Code
Estimated Cost
Helpful Options
1-800-373-2646
  • Design and Material Outline
  • Share
    Share on Facebook Tweet this on Twitter Pin this on Pinterest Recommend on Google Add to Stumbleupon Digg It! Share on LinkedIn Share on Tumblr
Plan Features
  • Atrium Home Plans
  • Vaulted and/or Volume Ceiling
  • Ultimate Kitchen Floor Plan
  • Hearth Room
  • Open Floor Plans
  • Daylight Basement
  • Deep Lot
  • Walk-Out Basement
  • Covered Front Porch
  • Main Level Master Bedroom
  • Laundry and/or Utility Room
  • Split Bedrooms
  • Patio, Veranda and/or Terrace
  • PDF File
  • Breakfast Nook
  • Eating Bar
  • Great Room
  • Fireplace
  • Atrium Ranch
  • One-Story
  • Side-Entry
  • Island
  • Sloping and/or Hillside Lot
  • Wide Lot
  • Breakfast Bar
  • Indoor Balcony
  • CAD File
Related Plans

HOME PLAN
#007D-0098

© Copyright by designer/architect      Drawings and photos may vary slightly. Refer to the floor plan for accurate layout.

Ultimate Atrium For A Sloping Lot
The Clayton Atrium Ranch Home has 3 bedrooms, 2 full baths and 1 half bath. Massive sunken great room with vaulted ceiling includes exciting balcony overlook of towering atrium window wall. Breakfast bar adjoins open "California" kitchen. Seven vaulted rooms for drama and four fireplaces for warmth. Master bath is complemented by the colonnade and fireplace surrounding the sunken tub and deck. The Clayton home plan can be many styles including Ranch House Plans, Southwestern House Plans, Contemporary House Plans, Florida House Plans, Sunbelt Home Plans, Luxury House Plans, Modern House Plans and Waterfront Home Plans.
see more...

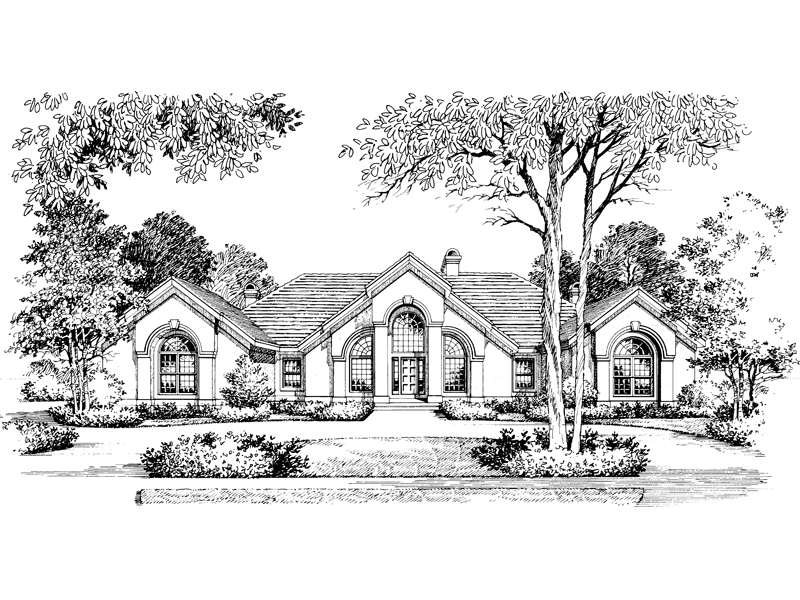

Ultimate Atrium Ranch Home For A Sloping LotWaterfront Home Plan Front Image of House - 007D-0002 | House Plans and MoreWaterfront Home Plan First Floor - 007D-0002 | House Plans and MoreWaterfront Home Plan Rear Elevation - 007D-0002 | House Plans and MoreWaterfront Home Plan Right Elevation - 007D-0002 | House Plans and MoreWaterfront Home Plan Left Elevation - 007D-0002 | House Plans and More
Need to flip the floor plan?
Click here to view in Mirror Reverse

First Floor

Image Of Large First Floor For House Plan 007D-0002
Plan Packages (ALL PRICES in US $)
CAD Package $2130
Reproducible Master (recommended) $1300
PDF File Format $1300
8-Set Package $1200
5-Set Package (minimum construction package) $1100
1-Set Package (study set - stamped not for construction) $1000

Which Plan Package is Right for Me?

Other Available Options (ALL PRICES in US $)
Mirror Reverse $15
Additional Sets $45
Material List (recommended) $125

What Other Options Do I Need?

Building Aids (ALL PRICES in US $)
Legal Kit $35
Plumbing Kit (not plan specific) $20
Electrical Kit (not plan specific) $20
Framing Kit (not plan specific) $20
Electrical, Framing & Plumbing Kit Package - (buy 2 get 3rd free) $40

Which Building Aids Do I Need?
